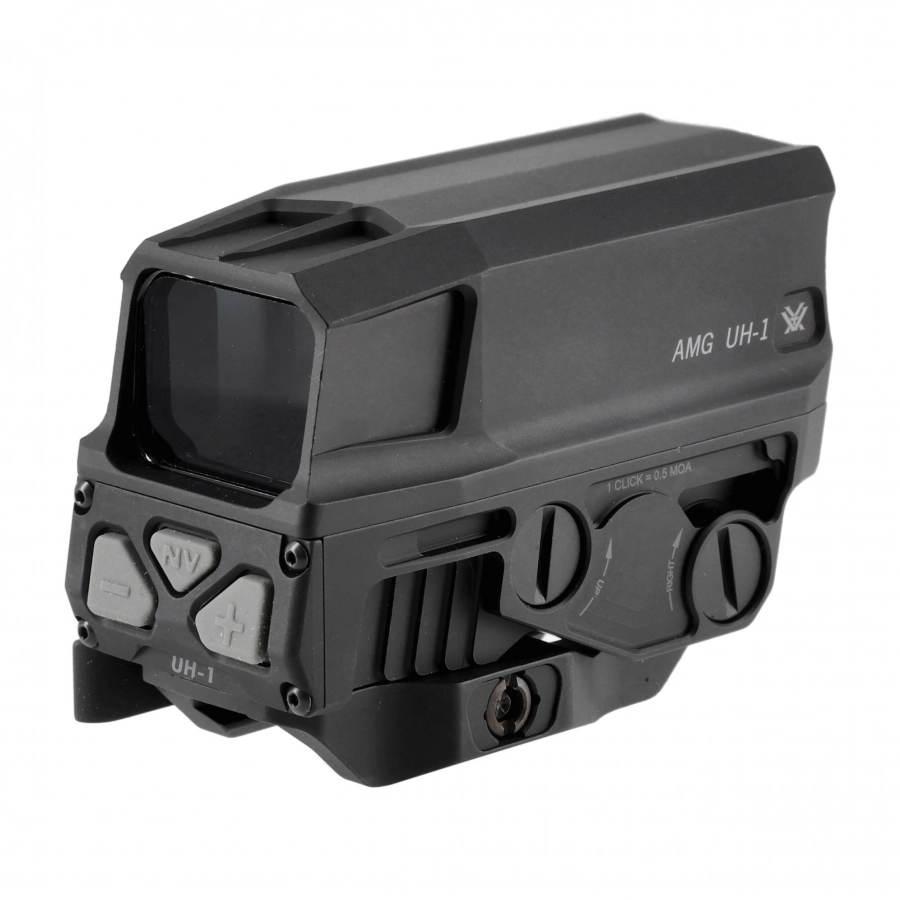

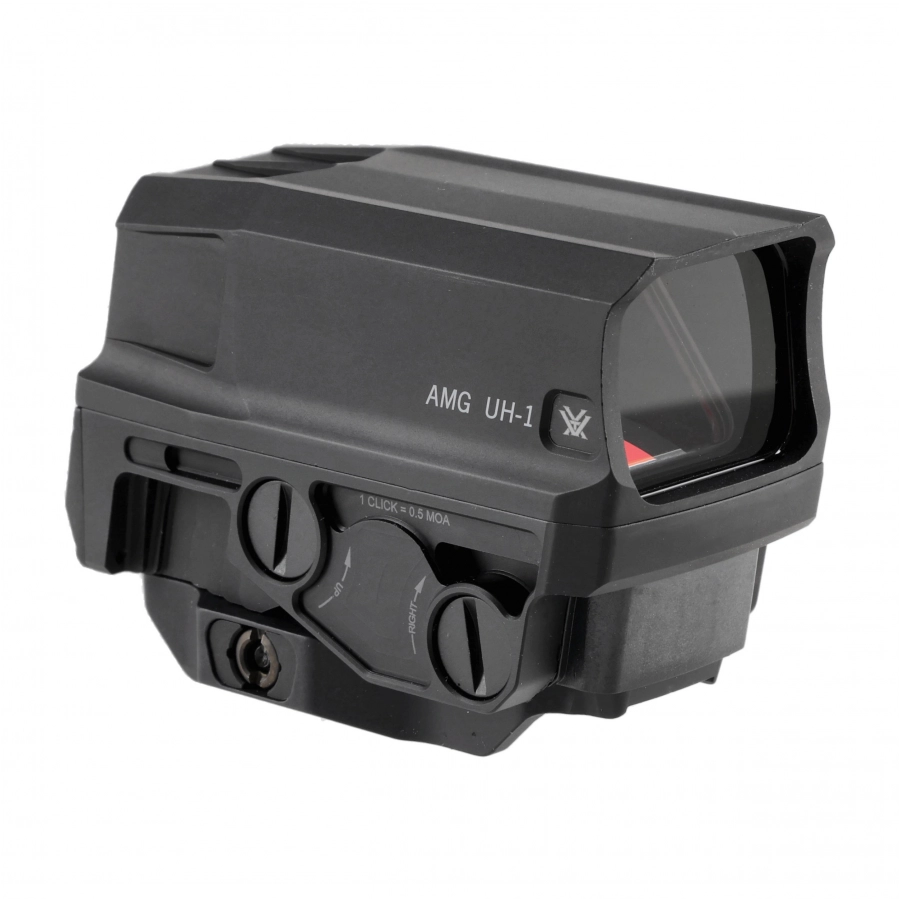

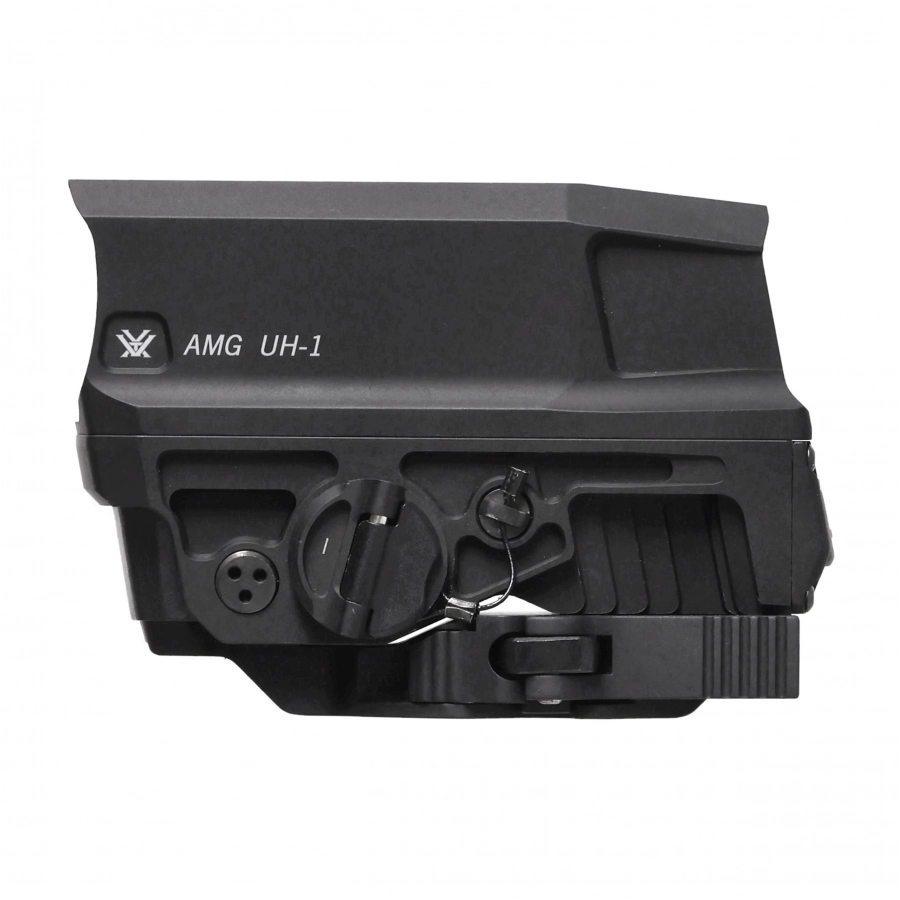

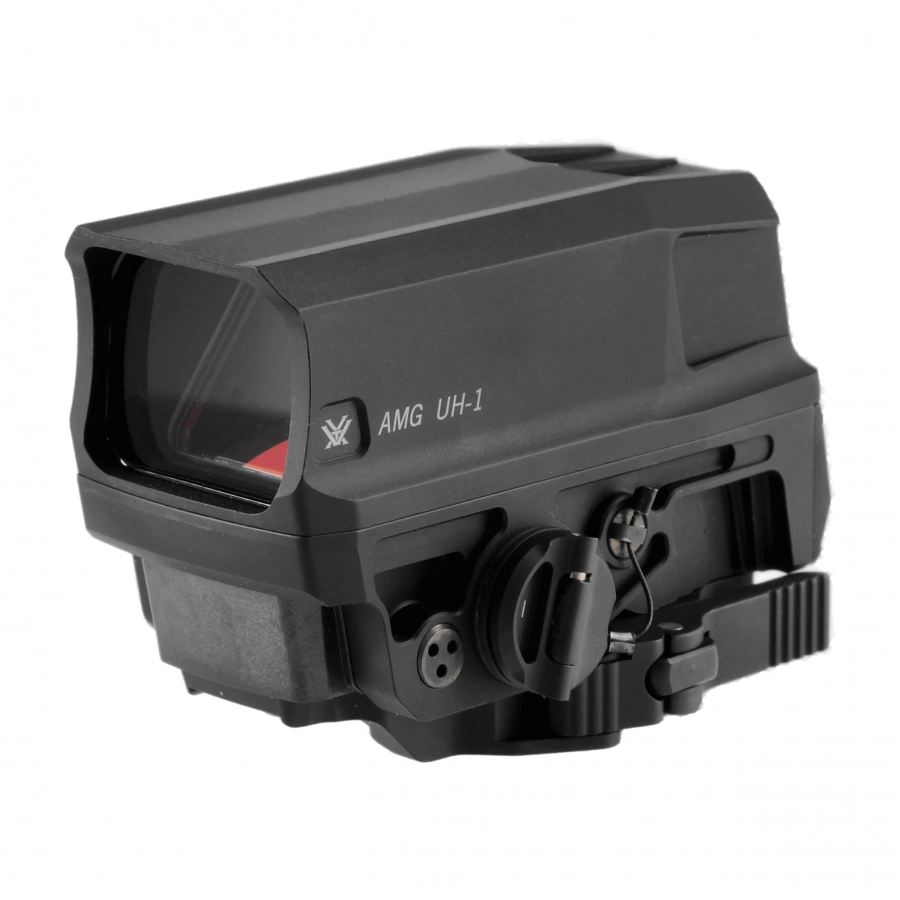

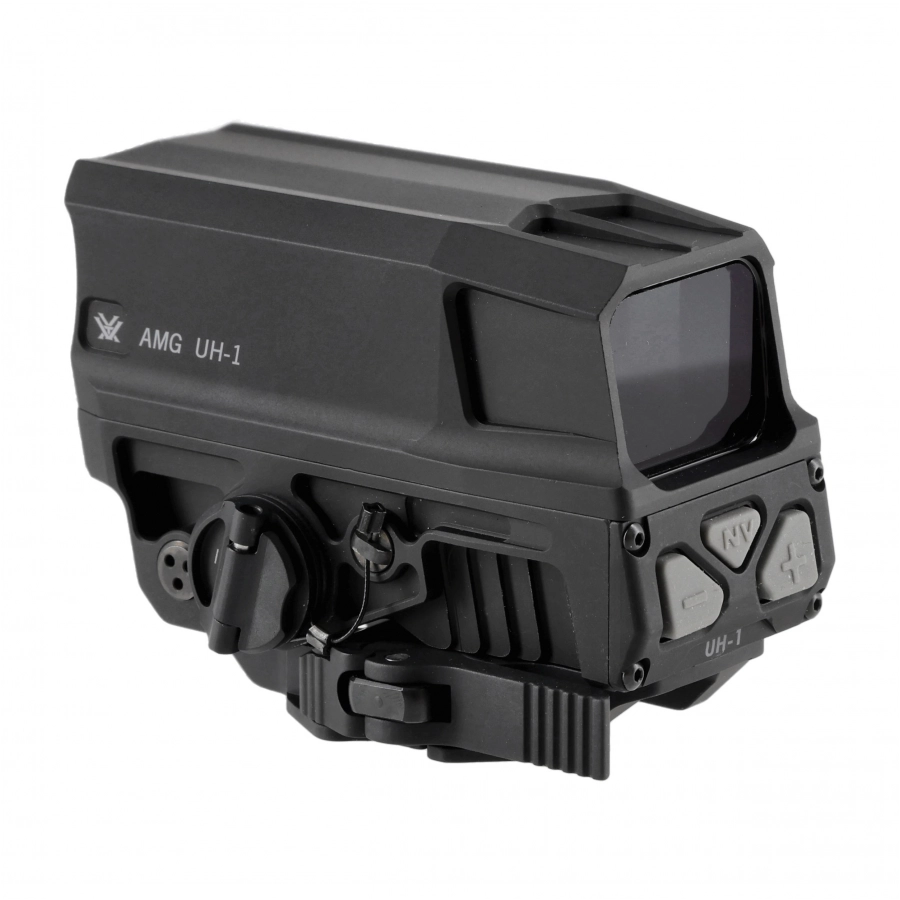

TheVortex Razor UH-1 Gen II is an upgraded version of the uncompromised holographic sight, featuring Vortex FHQ technology that completely eliminates scattered light emissions, an enlarged viewfinder for easier target entry and 4 brightness settings dedicated to night vision.
Main differences from Generation I:
- Higher image quality, completely free of noise,
- 4 night vision-compatible brightness levels activated by a dedicated button,
- larger viewfinder (compared to gen I),
- CR132A battery installed without tools.
TheVortex Razor AMG UH-1 gen II holographic collimator offers greater precision, reliability and speed of target entry. Vortex Razor AMG UH-1 gen II will be perfect for dynamic shooting, civilian-defense and uniformed services work.
Unlike classic collimators, the aiming mark is displayed on a holographic reticle embedded in the viewfinder. This causes the shooter to look at the reticle perpendicularly every time, as a result of which the phenomenon of parallax is eliminated, and the time of entering the target is impressively shortened.
The effect most noticeable to the shooter is a much shorter reaction time affecting the speed of the shot. The Vortex Razor UH-1 Gen II holographic sight works even when the lens is dirty and damaged.
The armored aluminum construction is IPX-8 rated, which means it is resistant to shock, recoil, total immersion in water and internal evaporation.
The Vortex AMG UH-1 Gen II is built for military and law enforcement use, highlighted by a separate button with quick access to 4 night vision settings and a memory function for the last daylight brightness setting.
The enlarged viewfinder offers a wider field of view, affecting comfort as well as better evaluation and ease of moving the aiming point.
Advanced optics
- Multi-layer anti-reflective coatings -provides high light transmission and a bright and clear image of the target,
- 15 brightness levels -11 daylight settings (memory function), 4 night vision settings,
- unlimited eye relief-allowing you to quickly fold in for a shot without having to search for the correct eye relief distance from the sight,
- no parallax error-holographic reticle completely eliminates parallax error, adversely affecting accuracy.
Aiming mark
- Red EBR-CQB re ticle - designed for shooting at short (ring triangle) and long distances (dot),
- target reticle: dot 1 MOA, ring 65 MOA,
- clique value: 1/2 MOA,
- vertical and horizontal adjustment range: 100 MOA,
- full rotation range: 16.5 MOA
Design
- Shock and recoil resistance -lenses mechanically protected to prevent zero loss in the event of a fall,
- ArmorTek -hard and scratch-resistant coating protects the outer lenses from scratches, dirt and dust,
- Argon filling - gas-filled system eliminates internal evaporation,
- FHQ technology-completely eliminates stray light emission (reflection of light from the front of the sight),
- Integrated QD mount- quick mounting on Weaver or Picatinny rail,
- Micro USB port-integrated socket for charging LFP123A cells (not included), which can act as a replacement power supply.
Power sources
- CR123A - powerful battery provides long operating time (non-rechargeable)
- LFP123A - rechargeable battery for shorter operating time (emergency power source), with rechargeable via built-in micro USB port
- Low battery warnings - "pulsing of the aiming mark" indicates that the battery is discharging and about 25 hours of operation remain.
