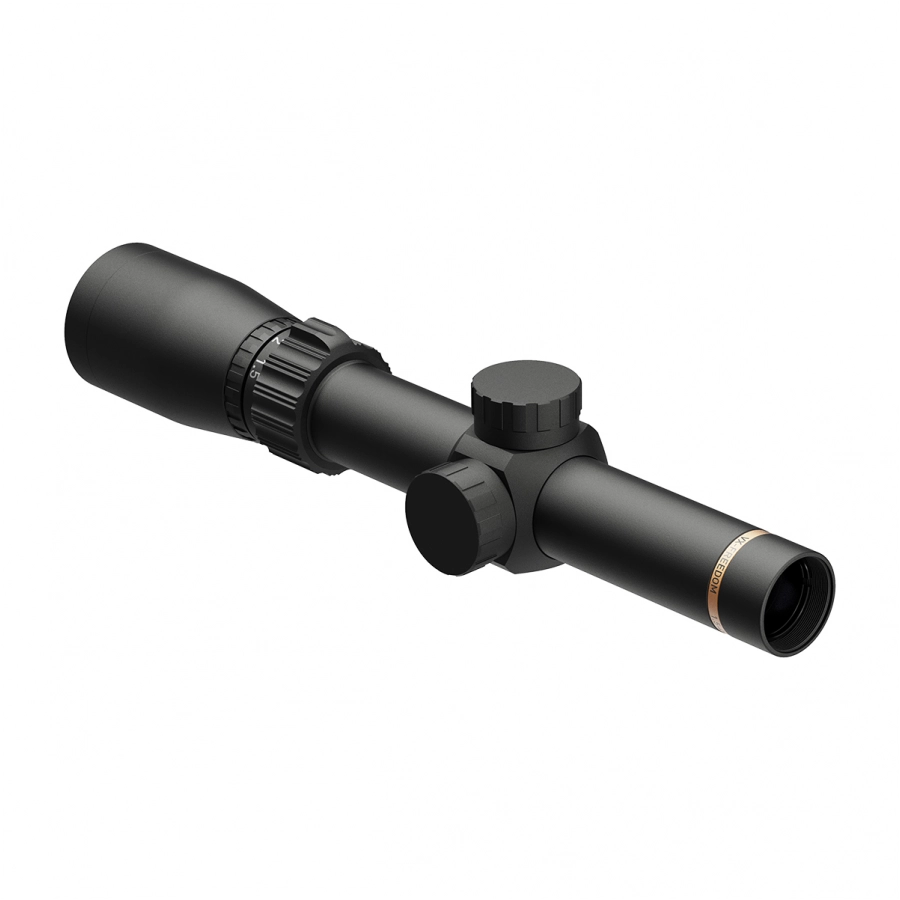

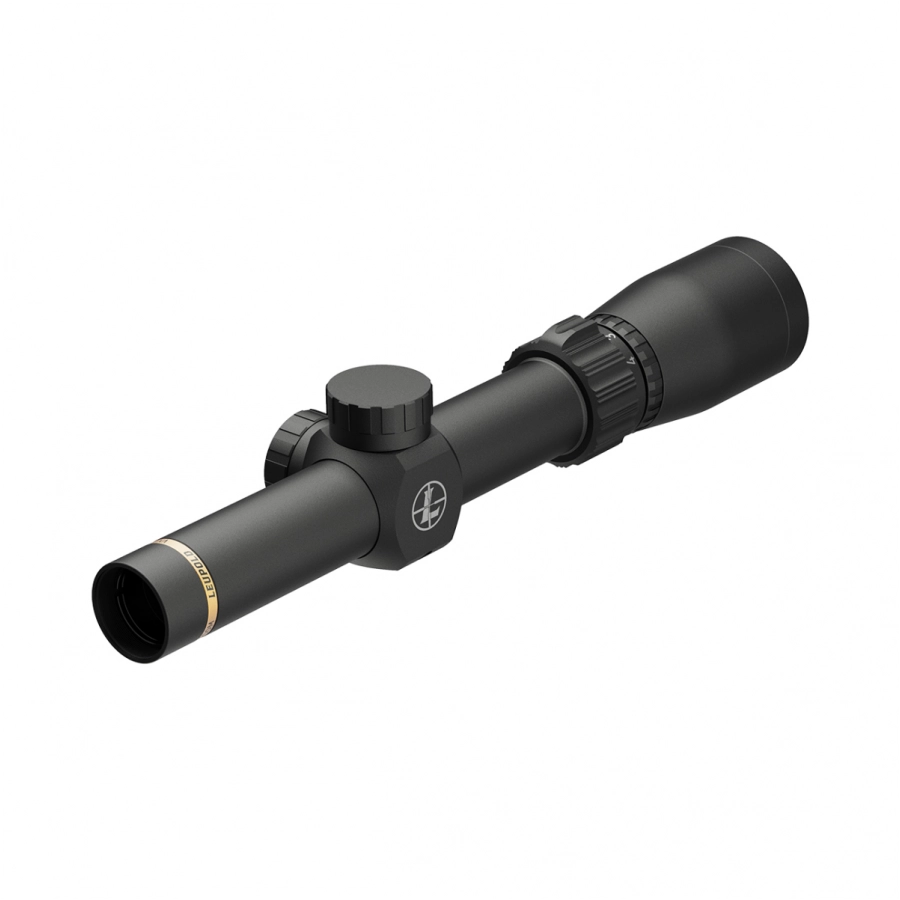

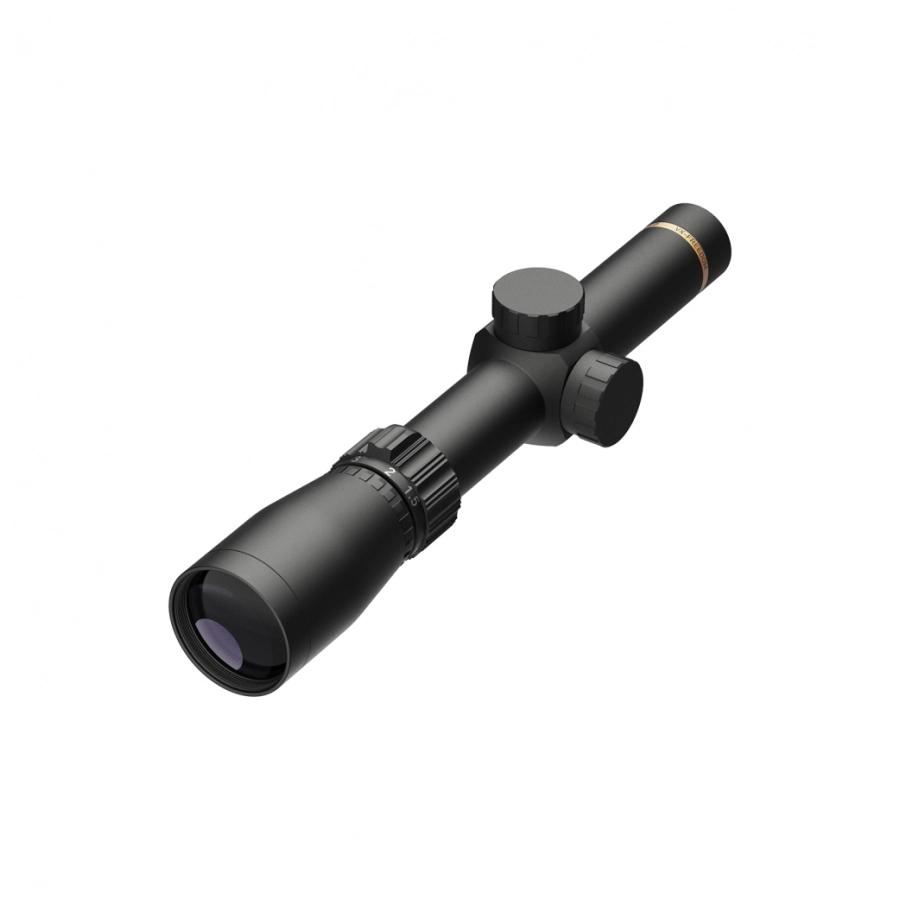

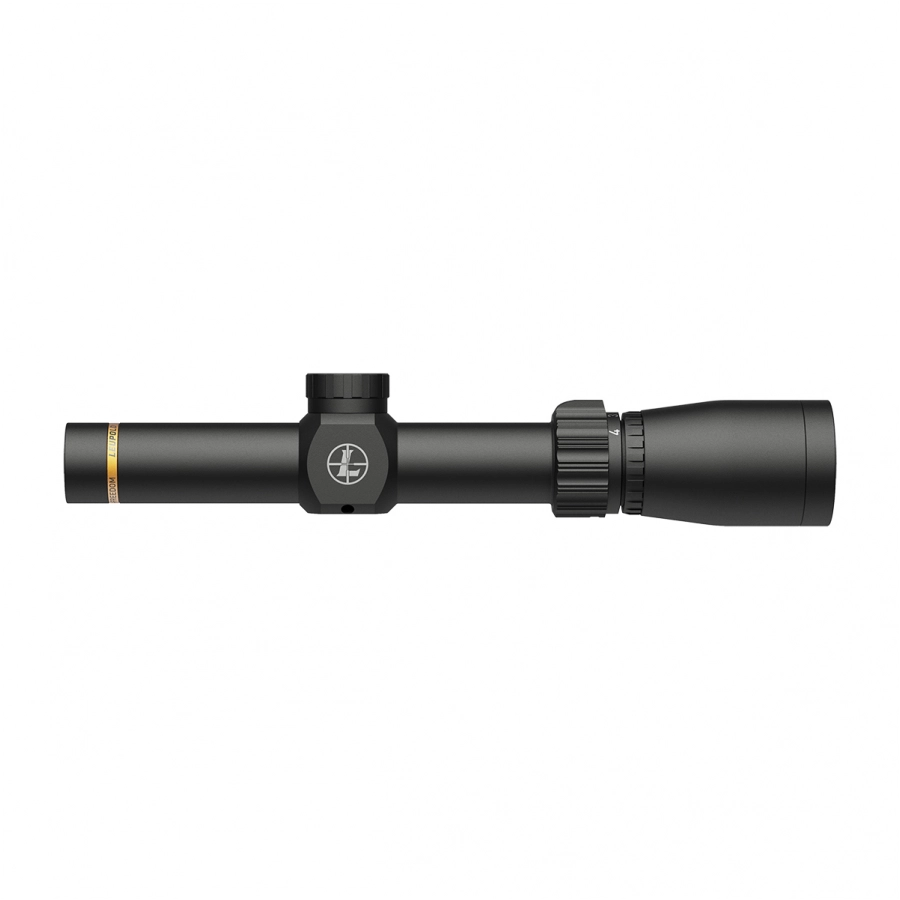

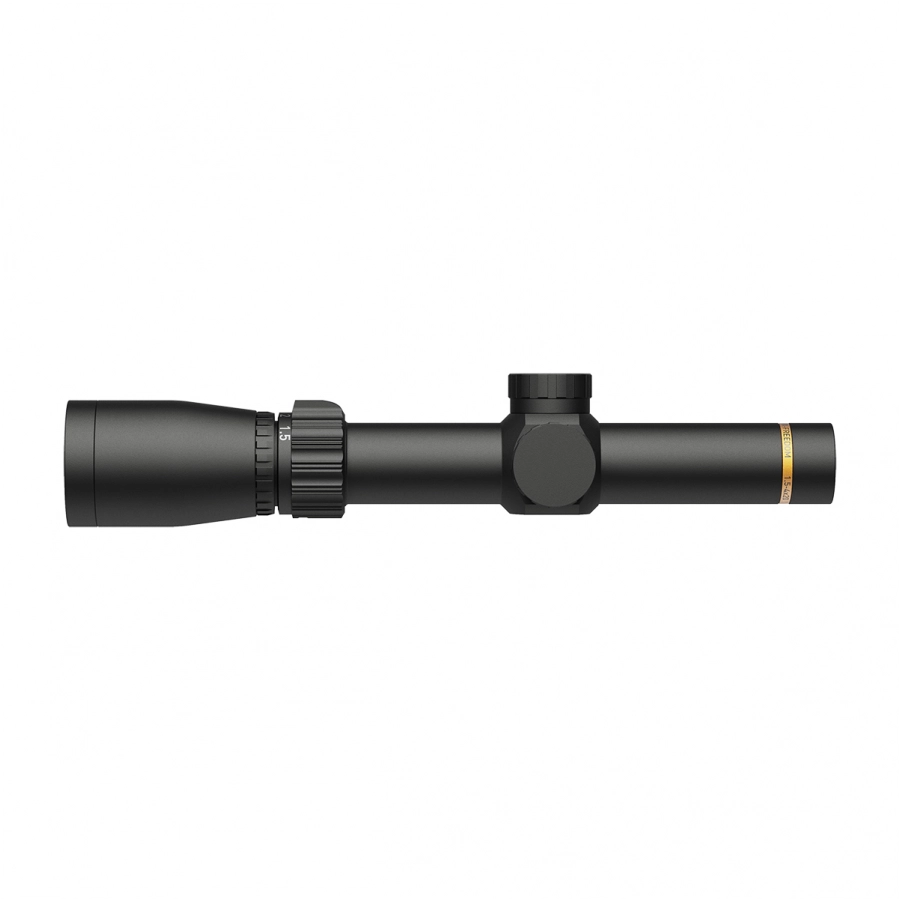

TheLeupold VX-Freedom 1.5-4x20 1" MOA-Ring is alightweight optical sight with a wide field of view designed for short m and medium range shooting. The scope uses the Twilight system to enhance image brightness, an open MOA-Ring sighting reticle and an enlarged zoom ring.
Highlights of the VX Freedom series:
TwilightLight Management System:
- Enhances image brightness in low-light environments,
- Eliminates image blur and stray light reflections,
- Premium lens ensures high image sharpness.
Optional Custom Dial drum system - whenshooting at long range, eliminates the need to apply aiming point corrections (aiming over the target) due to distance, gravity and wind effects.
Enlarged zoom ring - allows you to quickly and conveniently change the magnification without taking your eyes off the target.
Lightweight and durable design - evenly disperses recoil energy.
Leupold Punisher durability tests - scopes undergo rigorous testing on the Punisher simulation machine, during which they are subjected to 5000 recoil tests. The machine generates shocks with an energy 3× the recoil of a .308 rifle.
Optional FireDot illumination reticle* - illuminated aiming point visible in all lighting conditions (*selected models).
30mm tube* - at longer distances provides a greater range of aiming reticle adjustment (*selected models).
Motion Sensor Technology (MST)* - the use of a motion sensor extends battery life (*selected models).
Robust construction - the scope's sealed tube is 100% resistant to internal evaporation and weather conditions.
Lightweight and durable
TheLeupold VX-Freedom 1.5-4×20 1" Scout Duplex is a compact scope with a length of 284 mm and a weight of just 264 g.
The one-piece inch barrel (25.4 mm), is made of anodized aircraft-grade aluminum, thus guaranteeing resistance to shock, recoil, corrosion and scratches.
On the eyepiece there is an enlarged moleskin ring for quick and convenient magnification changes. Sealing and filling the optics with gas, completely eliminates the problem of internal lens evaporation and guarantees 100% weather resistance.
Dimensions
Optics
The American manufacturer Leupold places special emphasis on image quality and brightness. Therefore, the optical system is built on the basis of premium lenses and the Twilight system responsible for high light transmission, and reducing scattered light by nearly 80% more effectively than similar models available on the market. The visible image is bright, high-contrast, sharp from edge to edge and deep, so the scope can be used for hunting at dawn and dusk (adds about 10 minutes of light).
Its wide field of view (from 24.7 to 9.8 m / 100 m) and long exit pupil distance (max. 107 mm) make the scope best suited for Scout riflescopes. Its advantages will also be appreciated by hunters looking for a lightweight and compact optic for hunting.
Adjustment of the image focus is carried out with the help of a knurled ring.
Classic target reticle
The scope uses a open MOA-Ring target reticle in the background designed for dynamic shooting. The easy-to-read, high-contrast reticle allows for both accurate and fast shooting in a variety of lighting conditions.
Features of the MOA Ringj sighting reticle:
- large outer circle for easy aiming at close or fast-moving targets,
- vertical beam markers every 5 MOA,
- open center with tapered shoulders - ideal for shooting in low-light conditions
- Horizontal beam with directional markers scaled at 10 and 20 miles per hour
Low-profile turrets have 1/4 MOA adjustment. The crosshair adjustment range is 125 MOA vertically and horizontally. The barrel knobs have moleskin walls, so no additional tools are needed to adjust the scope.
