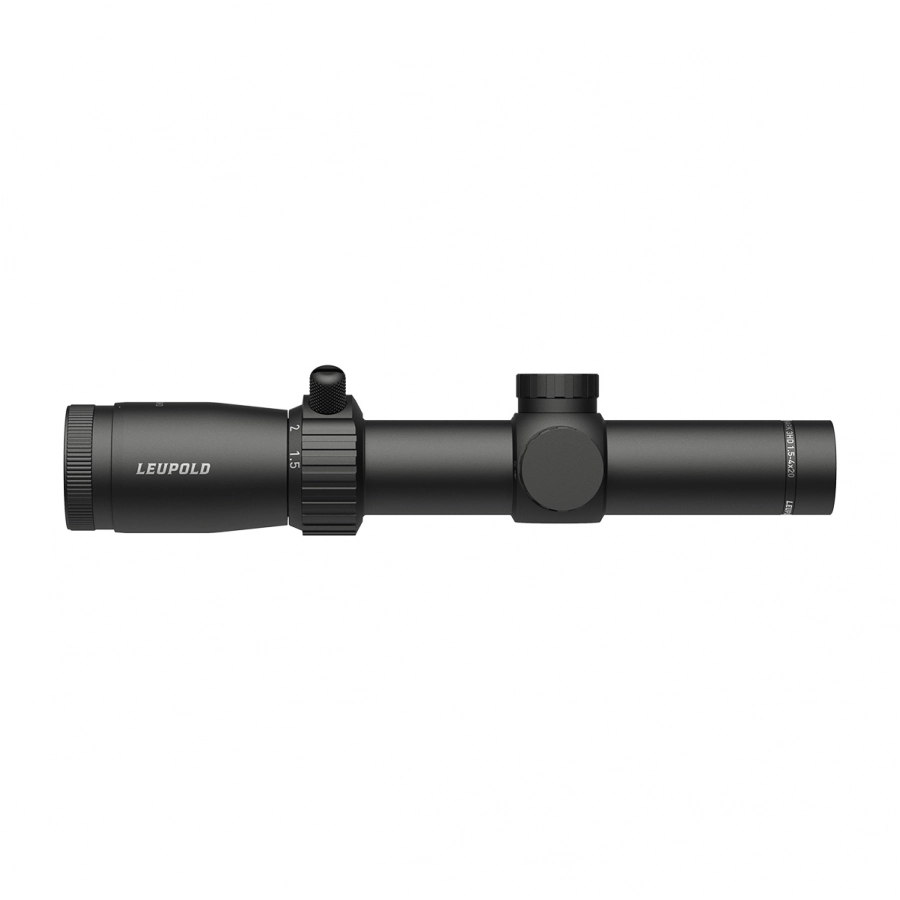

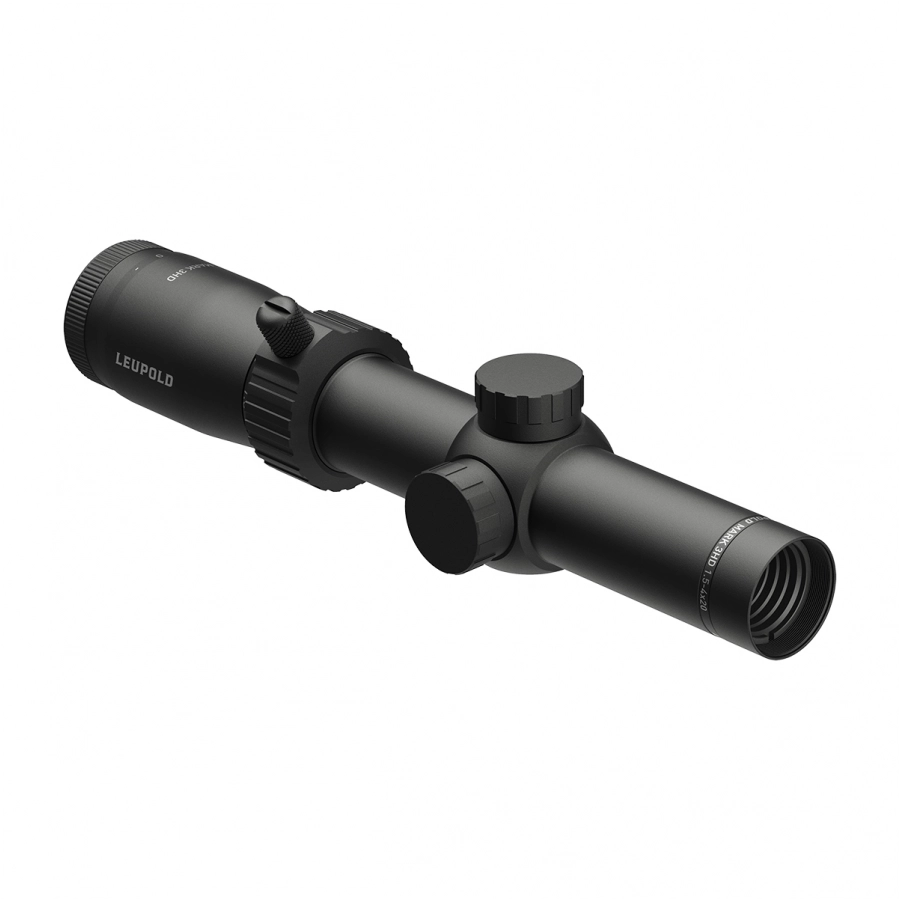

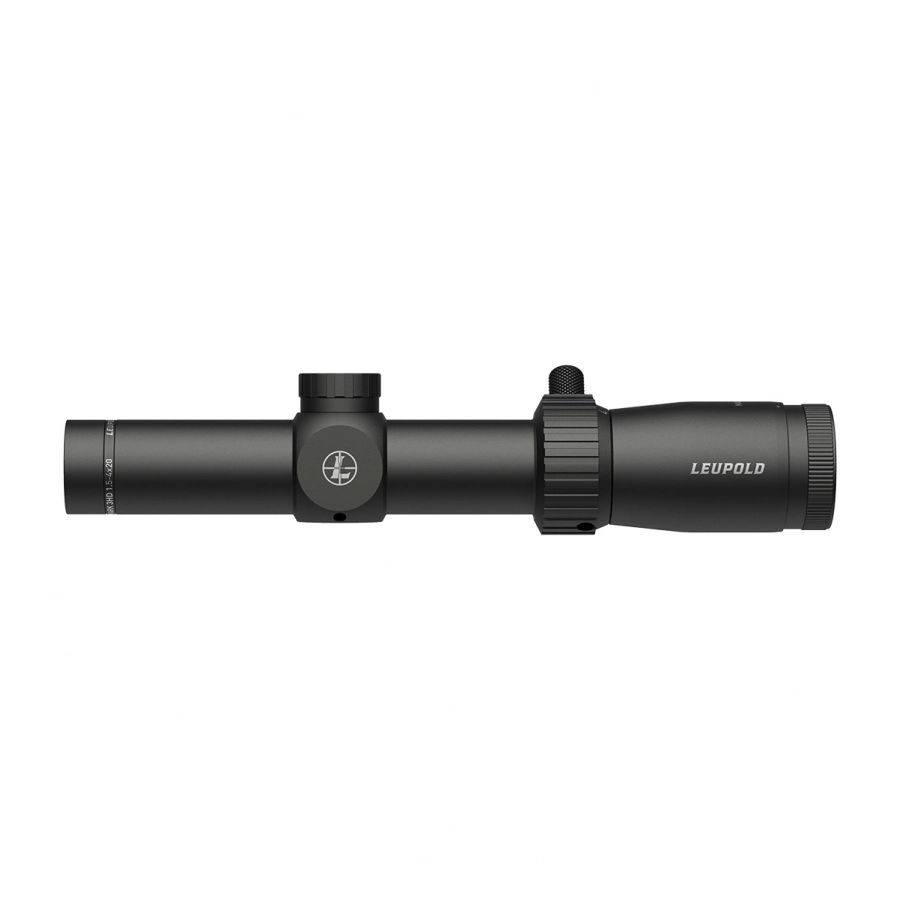

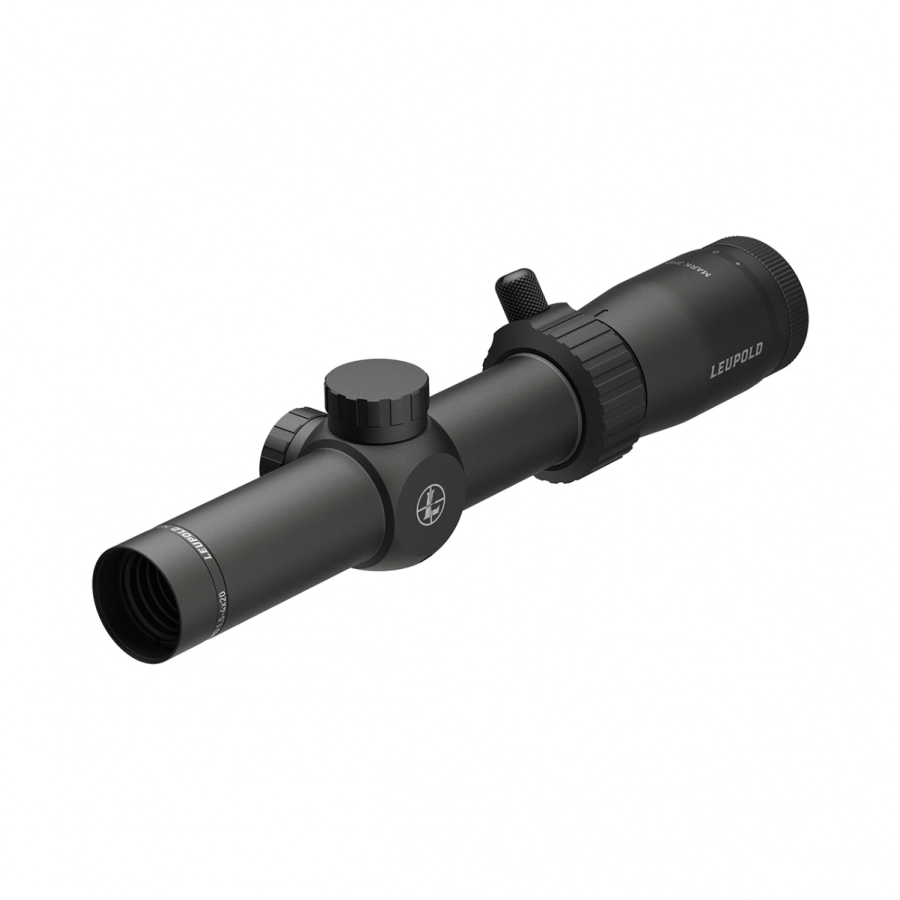

TheLeupold Mark 3HD 1.5-4×20 30mm AR-Ballistic is a premium lightweight optical sight for hunters and sport shooters, featuring the Elite Optical System light management system, a large magnification lever and a ballistic reticle dedicated to AR-15 carbines.
Highlights of the Mark 3HD series:
Elite Optical System:
- Unrivaled brightness even in the toughest conditions,
- Enhanced Twilight Efficiency,
- Enhances image brightness in low-light environments (approximately 30 minutes),
- Eliminates image blur and stray light reflections,
- Premium lenses provide edge-to-edge sharpness,
- enhances image depth and contrast.
Optional Custom Dial drum system - when shooting at long range, eliminates the need to apply aiming point corrections (aiming over the target) due to distance, gravity and wind effects.
Lightweight and durable design - evenly disperses recoil energy.
Leupold Punisher durability tests - the scopes undergo rigorous testing on the Punisher simulation machine, during which they are subjected to 5000 recoil tests. The machine generates shocks with an energy 3× greater than the recoil of a .308 rifle.
30mm tube - provides a greater range of aiming reticle adjustment.
Fast Focus - a mottled lever for changing the magnification with an enlarged pin,
Rugged construction - the scope's sealed tube is 100% resistant to internal evaporation and weather conditions.
Secondary sighting reticle - provides universal use
125 MOA adjustment range - increased range of adjustment.
Modern technologies
The Leupold Mark 3HD 1.5-4×20 30 mm AR-Balistic is a versatile tactical and hunting rifle scope with a length of 239 mm and a weight of 272 g. The scope can be used on both hunting rifles and semi-automatic rifles.
The scope has an aluminum (6061-T6) tube with a diameter of 30 mm, which, unlike the inch version, provides a much greater range of aiming reticle adjustment of 125 MOA vertically and horizontally. On the eyepiece there is a moled ring with a pin for quick and convenient magnification changes.The scope's tube is filled with dry nitrogen, which eliminates the effects of thermal shock, reduces gas diffusion inside the scope and eliminates the problem of internal lens evaporation.
The scope underwent rigorous testing on the Punisher simulation machine, during which the scopes were subjected to 5,000 recoil endurance tests. The machine generates shocks with an energy of 3× the recoil of a .308 rifle.
Dimensions
Bright and clear image
The American manufacturer Leupold places special emphasis on image quality and brightness. The optics use high-resolution calcium fluoride lenses, which ensures incredible image clarity and sharpness at all magnification levels. The outer surfaces of the lenses are covered with a durable coating, which effectively protects the optics from scratches, reduces the settlement of water, dirt and fingerprints.
The scope's high brightness, 3× magnification and field of view (from 9.45 to 1.92 m / 100 m) allow comfortable observation and long-distance shooting in difficult lighting conditions.
The reticle is dedicated to AR15
Features of the AR-Ballistics reticle:
- Designed for AR15 .223 riflescopes,
- Secondary reticle based on Duplex crosshairs,
- Overrun markers for quick target entry,
- zero at 200 yards (182.88 m).

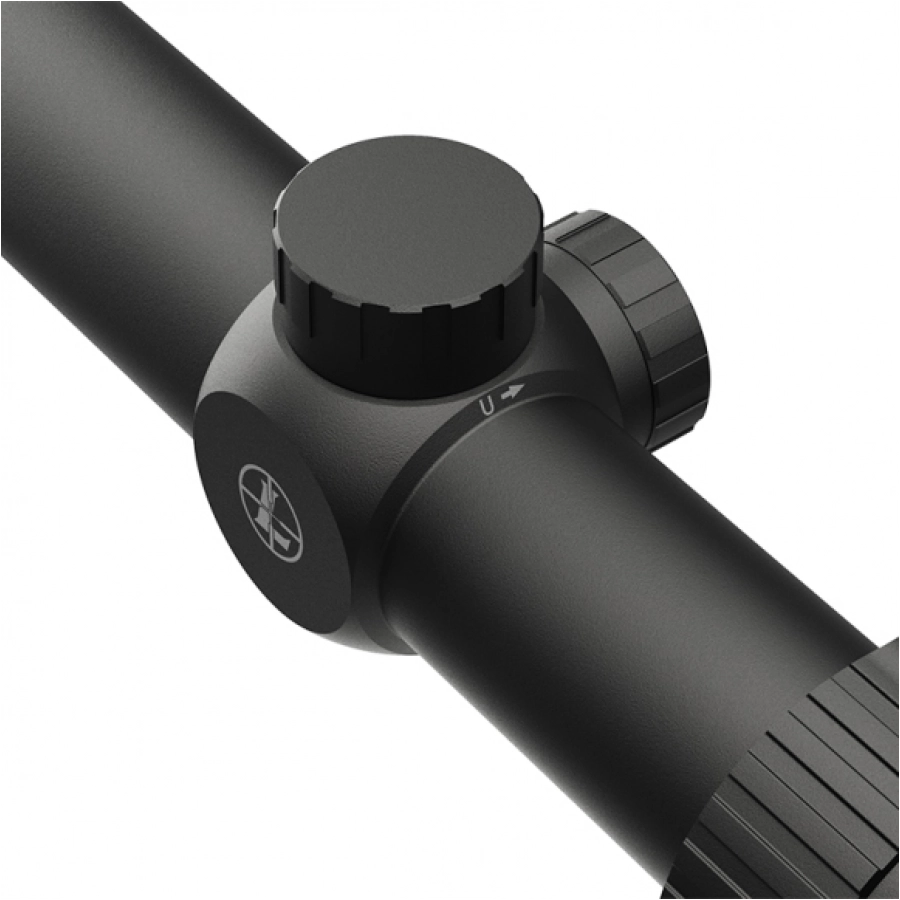

Low-profile barrels with quick zeroing system
The scope uses the Zero Lock System, which eliminates the possibility of accidentally changing elevation settings while allowing quick and precise zero return without the need for additional tools.
CDS System*
The CDS (Custom Dial System) allows the shooter to adjust the parameters of the elevation reel to match the distance and ballistics of a particular ammunition. Thanks to the CDS setting, after just a short training session, we can shoot accurately and reproducibly at long distances without the need to use an elevation table (changing the aiming point).
