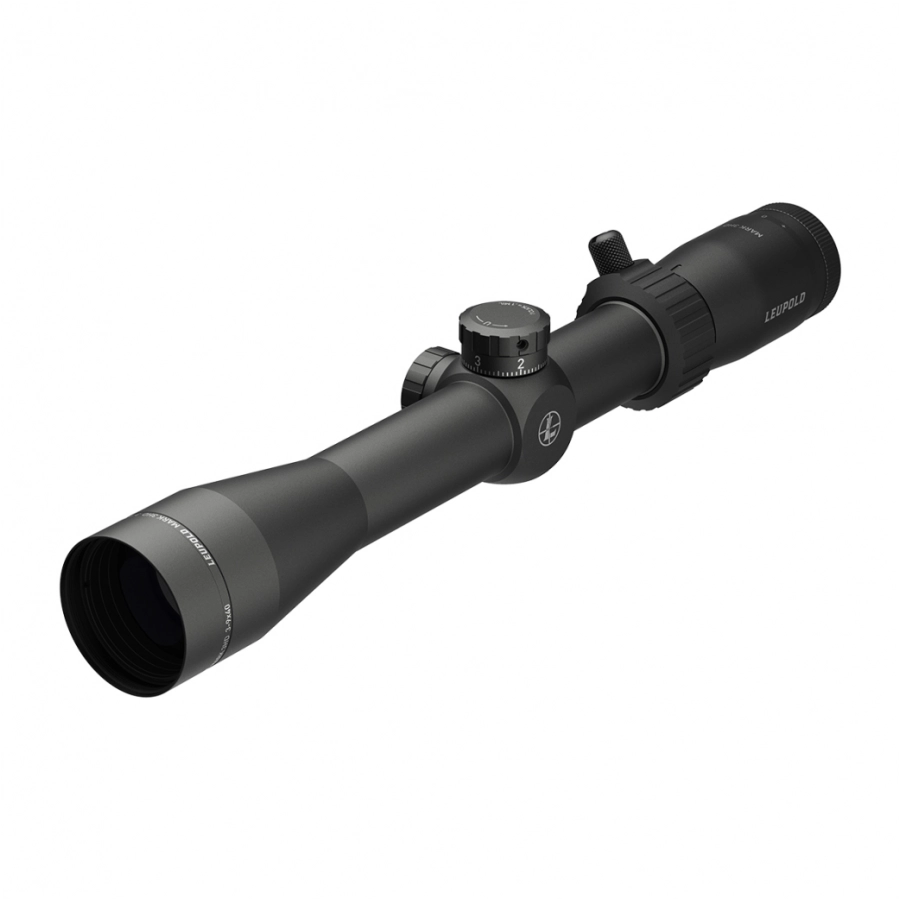

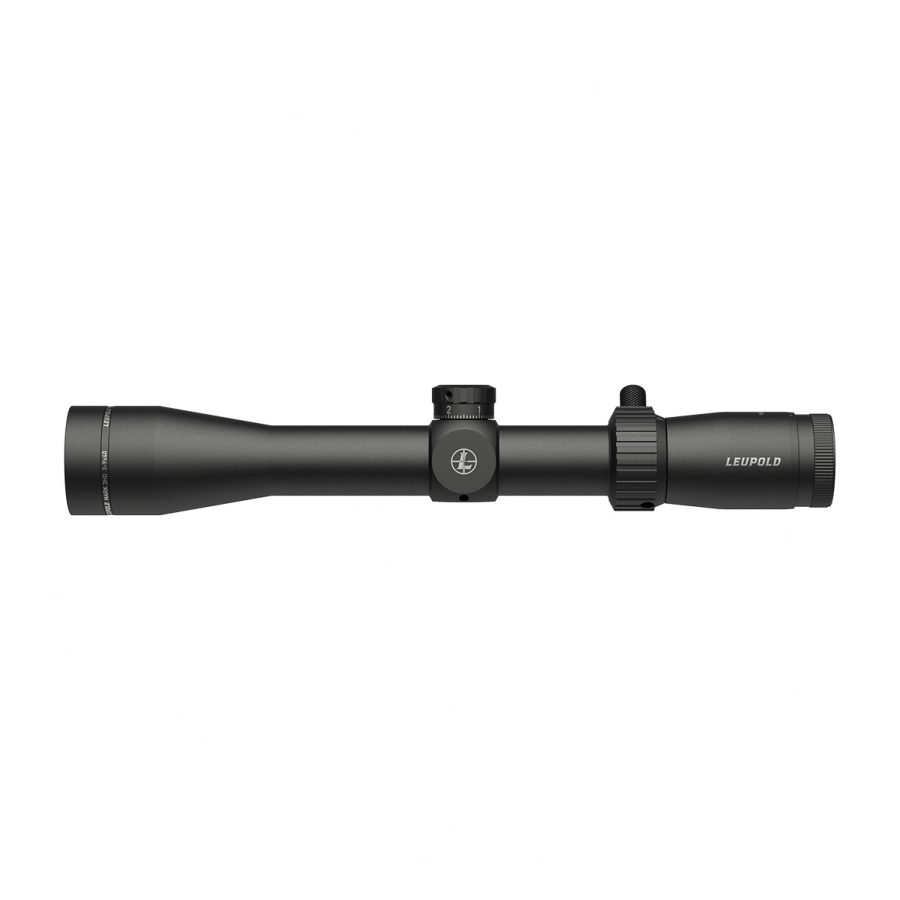

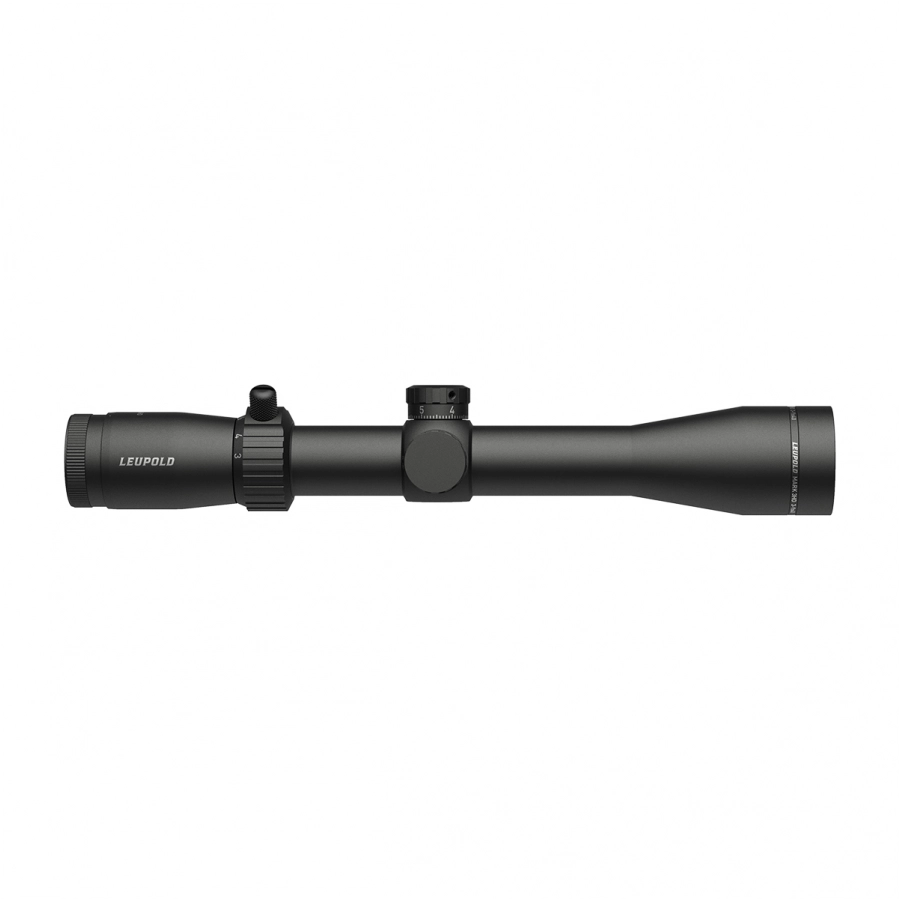

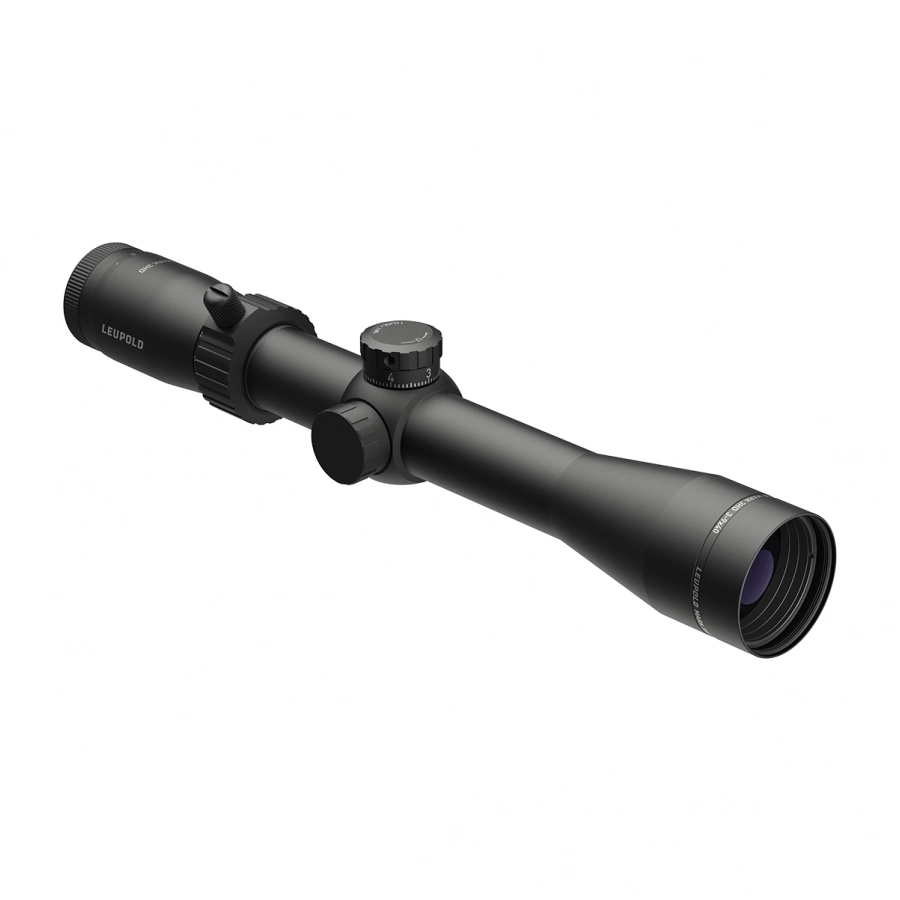

TheLeupold Mark 3HD 3-9x40 30 P5 MilDot 30mm is a premium all-around optical sight for hunters and sport shooters, featuring the Elite Optical System light management system, HD optics, MilDot target reticle in the background and a CDS-compatible P5 riser turret,
Highlights of the Mark 3HD series:
Elite Optical System:
- Unrivaled brightness even in the most challenging conditions,
- Enhanced Twilight Efficiency,
- Enhances image brightness in low-light environments (approximately 30 minutes),
- Eliminates image blur and stray light reflections,
- Premium lenses provide edge-to-edge sharpness,
- enhances image depth and contrast.
Optional Custom Dial barrel system - when shooting at long range, eliminates the need to apply aiming point corrections (aiming over the target) due to distance, gravity and wind effects.
Lightweight and durable design - evenly disperses recoil energy.
Leupold Punisher durability tests - the scopes undergo rigorous testing on the Punisher simulation machine, during which they are subjected to 5000 recoil tests. The machine generates shocks with an energy 3× greater than the recoil of a .308 rifle.
30mm tube - provides a greater range of aiming reticle adjustment.
Fast Focus - a mottled lever for changing the magnification with an enlarged pin,
Rugged construction - the scope's sealed tube is 100% resistant to internal evaporation and weather conditions.
Secondary sighting reticle - provides universal use
125 MOA adjustment range - increased range of adjustment.
Modern technologies
The Leupold Mark 3HD 3-9x40 30 mm is a versatile tactical-fighter scope with a length of 322 mm and a weight of 425 g. The scope can be used on both hunting rifles and semi-automatic rifles.
The scope has an aluminum (6061-T6) tube with a diameter of 30 mm, which, unlike the inch version, provides a much greater range of aiming reticle adjustment of 125 MOA/ 15 MRAD vertically and horizontally. On the eyepiece there is a moleskin ring with a twist-off pin used for quick and convenient magnification changes. The scope's tube is filled with dry nitrogen gas, which eliminates the effects of thermal shock, reduces gas diffusion inside the scope and eliminates the problem of internal lens evaporation.
The scope underwent rigorous testing on the Punisher simulation machine, during which the scopes were subjected to 5,000 recoil endurance tests. The machine generates shocks with an energy 3× greater than the recoil of a .308 rifle.
Dimensions
Bright and clear image
The American manufacturer Leupold places special emphasis on image quality and brightness. The optics use high-resolution calcium fluoride lenses, which ensures incredible image clarity and sharpness at all magnification levels. The outer surfaces of the lenses are covered with a durable coating, which effectively protects the optics from scratches, reduces the settlement of water, dirt and fingerprints.
Thescope's high brightness, 3× magnification and field of view (from 11.23 to 4.52/ 100 m) allow comfortable observation and shooting at varying distances in difficult lighting conditions.
Mil-Dot sighting reticle
The scope uses the popular Mil-Dot sighting reticle in the background expressed in MRAD. The crosshairs have thick beams that transition to a hairline crosshair (0.06 MRAD thick) in the central part with dotted graduations every 1 MRAD.

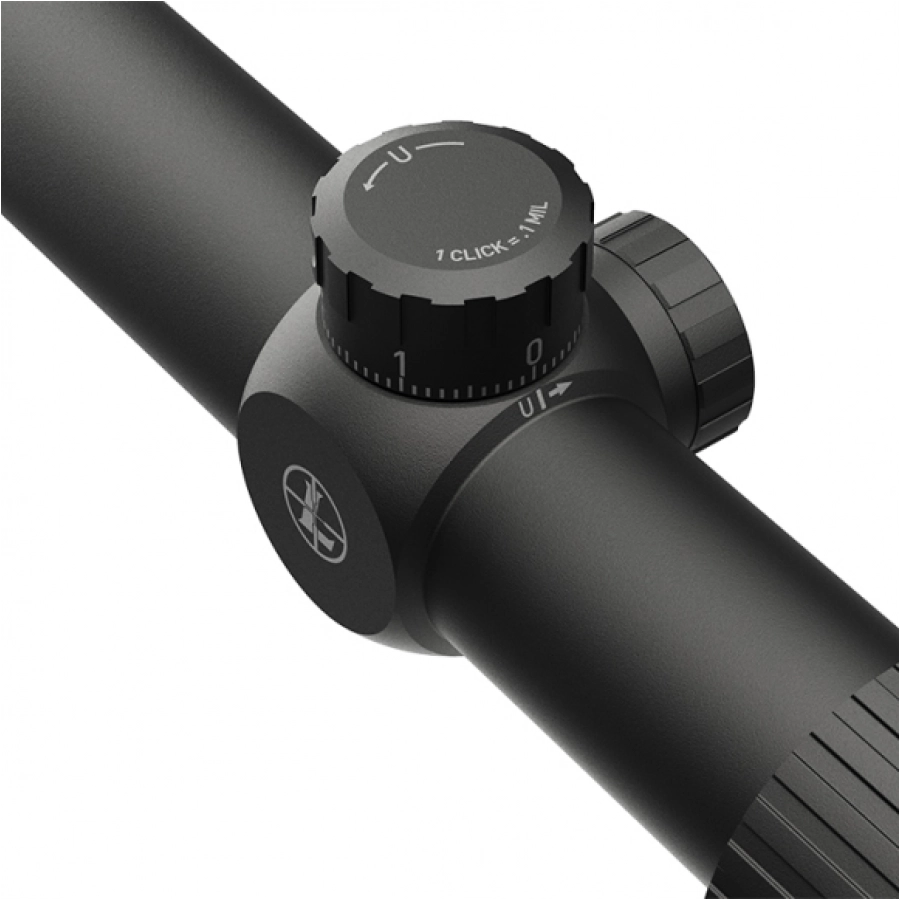

A low-profileCDS-compatible P5 knobis used to adjust the plumb line. Aggressive moleting allows for comfortable and precise adjustment even with shooting gloves.
