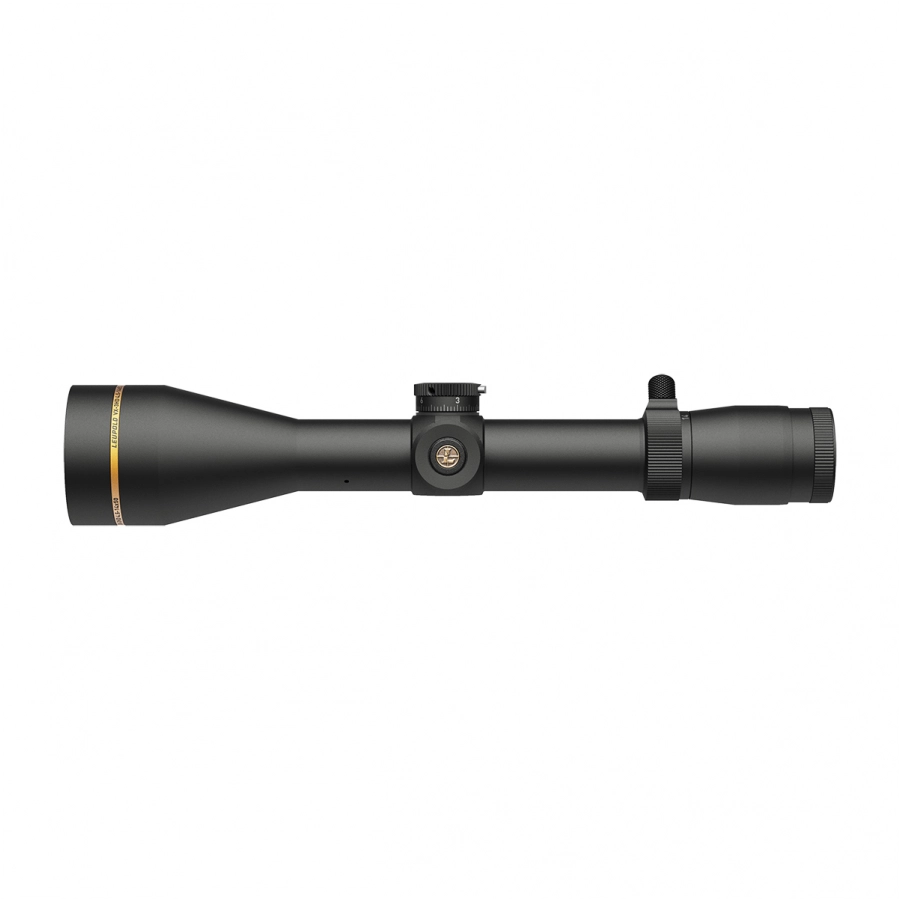

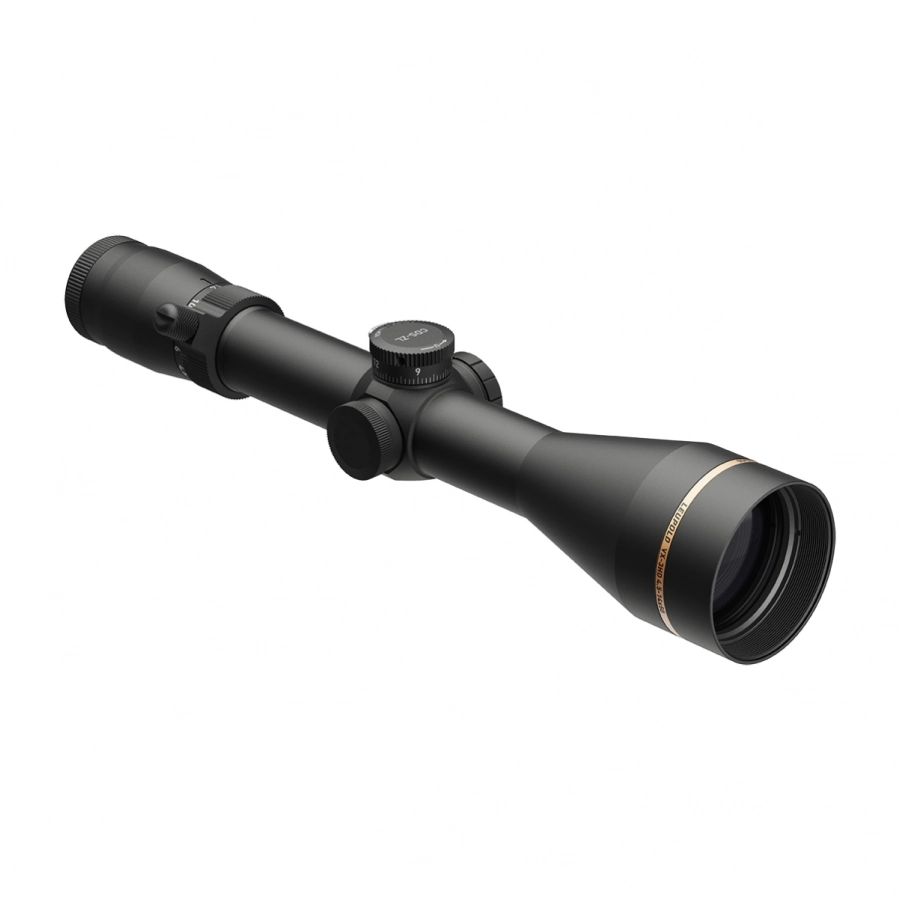

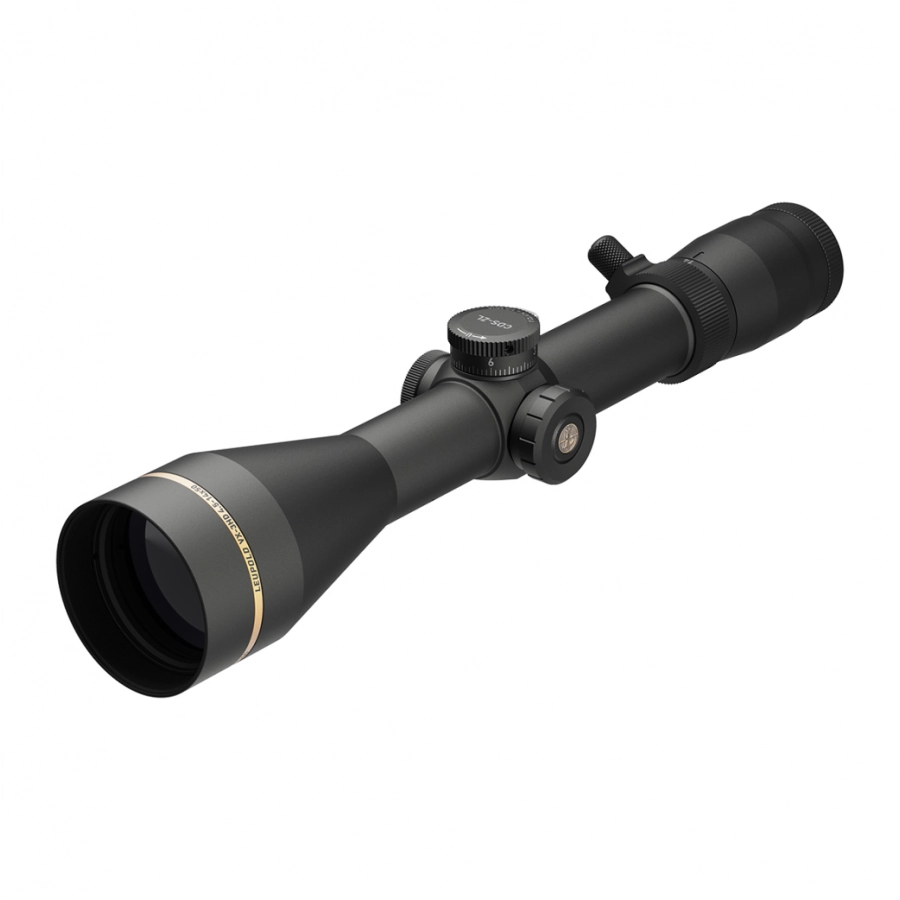

TheLeupold VX-3HD 4.5-14x50 30mm iR CDS-ZL FireDot Twilight Hunter is a versatile sight for hunters and sport shooters, featuring the Elite Optical System, an illuminated Twilight Hunter sight reticle, and a ZeroStop system to protect against accidental zero changes. An excellent choice for shooting at variable distances.
Highlights of the Mark VX-3HD series:
Elite Optical System:
- Unrivaled brightness even in the most challenging conditions,
- Enhanced Twilight Efficiency,
- Enhances image brightness in low-light environments (approximately 30 minutes),
- Eliminates image blur and stray light reflections,
- Premium lenses provide edge-to-edge sharpness,
- enhances image depth and contrast.
Optional Custom Dial barrel system - when shooting at long range, eliminates the need to apply aiming point corrections (aiming over the target) due to distance, gravity and wind effects.
Lightweight and durable construction - evenly disperses recoil energy
Leupold Punisher durability tests - the scopes undergo rigorous testing on the Punisher simulation machine, during which they are subjected to 5,000 recoil tests. The machine generates shocks with an energy 3× greater than the recoil of a .308 rifle
30mm tube - provides a greater range of aiming reticle adjustment
Fast Focus - unscrewable lever for changing magnification
Robust construction - tube resistant to moisture, dew, extreme temperatures, elevation changes
Secondary sight ing reticle - provides universal use
125 MOA adjustment range - increased adjustment range
Modern technologies
The Leupold VX-3HD 4.5-14x50 is a robust tactical-fighter scope with a length of 313 mm and a weight of 2 g. The scope can be used on both hunting rifles and semi-automatic rifles.
The scope has an aluminum (6061-T6) 30 mm barrel, which provides a large adjustment range of 75 MOA/ 21.8 MRAD for vertical and horizontal reticle settings. On the eyepiece is a moleskin ring with a twist-off pin for quick and convenient magnification changes. The scope's tube is filled with dry nitrogen gas, which eliminates the effects of thermal shock, reduces gas diffusion inside the scope and eliminates the problem of internal lens evaporation.
The scope underwent rigorous testing on the Punisher simulation machine, during which the scopes were subjected to 5,000 recoil endurance tests. The machine generates shocks with an energy 3× greater than the recoil of a .308 rifle.
Dimensions
Bright and clear image
The American manufacturer Leupold places special emphasis on image quality and brightness. The optics use high-resolution calcium fluoride lenses, which ensures incredible image clarity and sharpness at all magnification levels. The outer surfaces of the lenses are covered with a durable coating, which effectively protects the optics from scratches, reduces the settlement of water, dirt and fingerprints.
Thescope's high brightness, 3× magnification and field of view (from 19.9 to 7.4 m / 100 m) allow comfortable observation and fast shooting at various distances also in difficult lighting conditions.
Illuminated target reticle - an invaluable aid when shooting in low light conditions
The scope uses a Twilight Hunter sighting reticle with an illuminated aiming point. The Twilight Hunter crosshair consists of 4 arms with a thickness of 3.4 MOA, which from the midpoint passes into 0.4 MOA hairline beams. The clear, high-contrast reticle and illuminated red dot allow for both precision and rapid shooting in a variety of lighting conditions.
The FireDot fiber-optic aiming point automatically moves the shooter's sights to the center of the reticle, making target entry quick and instinctive. Illumination adjustments (8 levels) are made using the side Push Button. The first 4 settings are for use in low light conditions, the others for use in sunlight. The adjustment range allows comfortable operation regardless of lighting conditions and time of day....

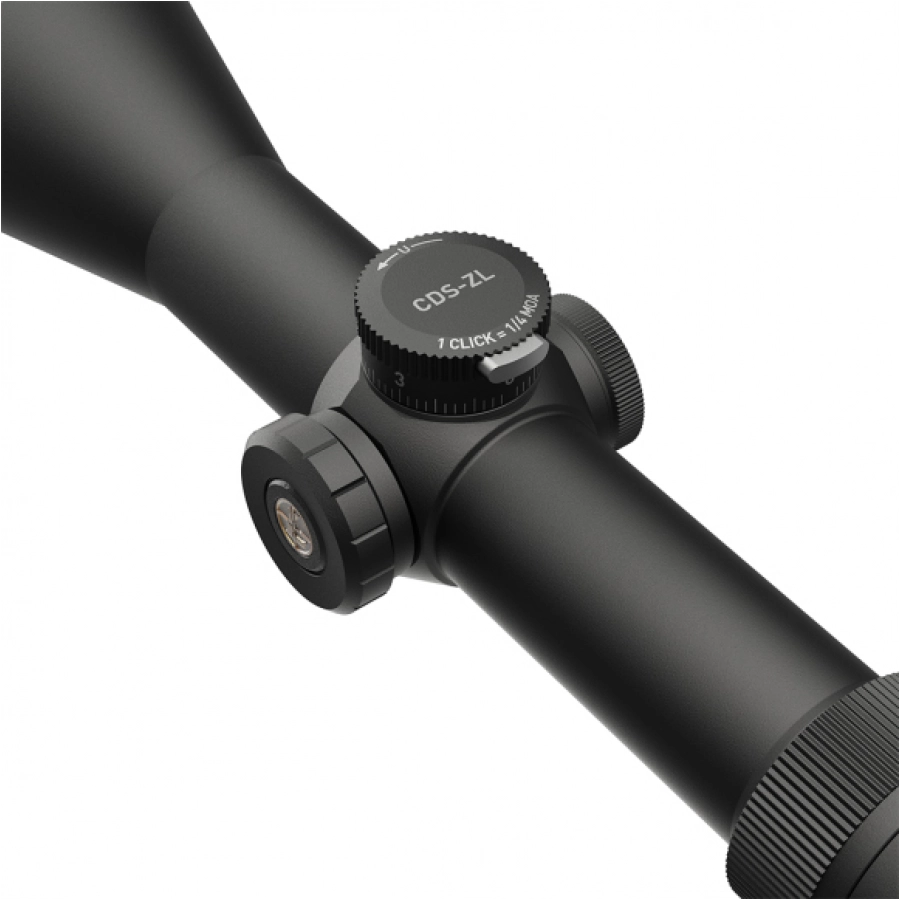

CDS system
The scope uses an innovative CDS (Custom Dial System) that allows the shooter to adjust the parameters of the elevation barrel to match the distance and ballistics of specific ammunition. CDS-ZL2 is a low-profile adjustment turret that prevents accidental changes in settings. The Zero Lock locking system provides easy one-button reset of settings. Once the CDS is properly configured, after just a short training session, we can shoot accurately and reproducibly at long distances without the need to use an elevation table (changing the aiming point).
