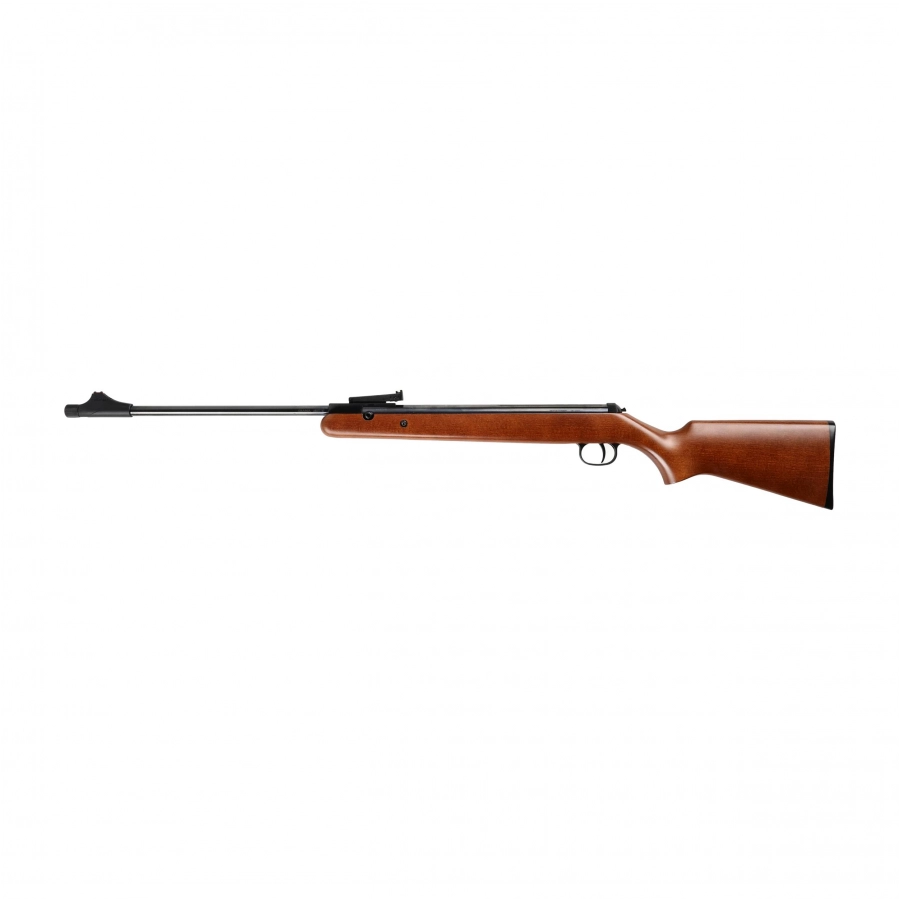

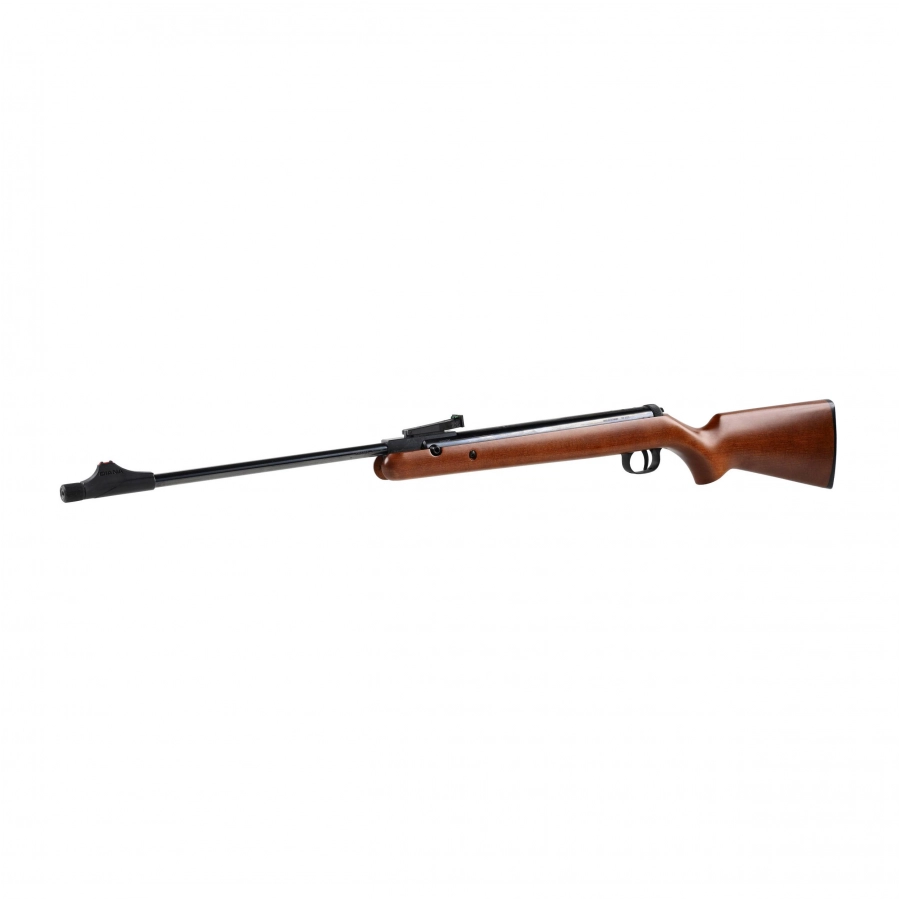

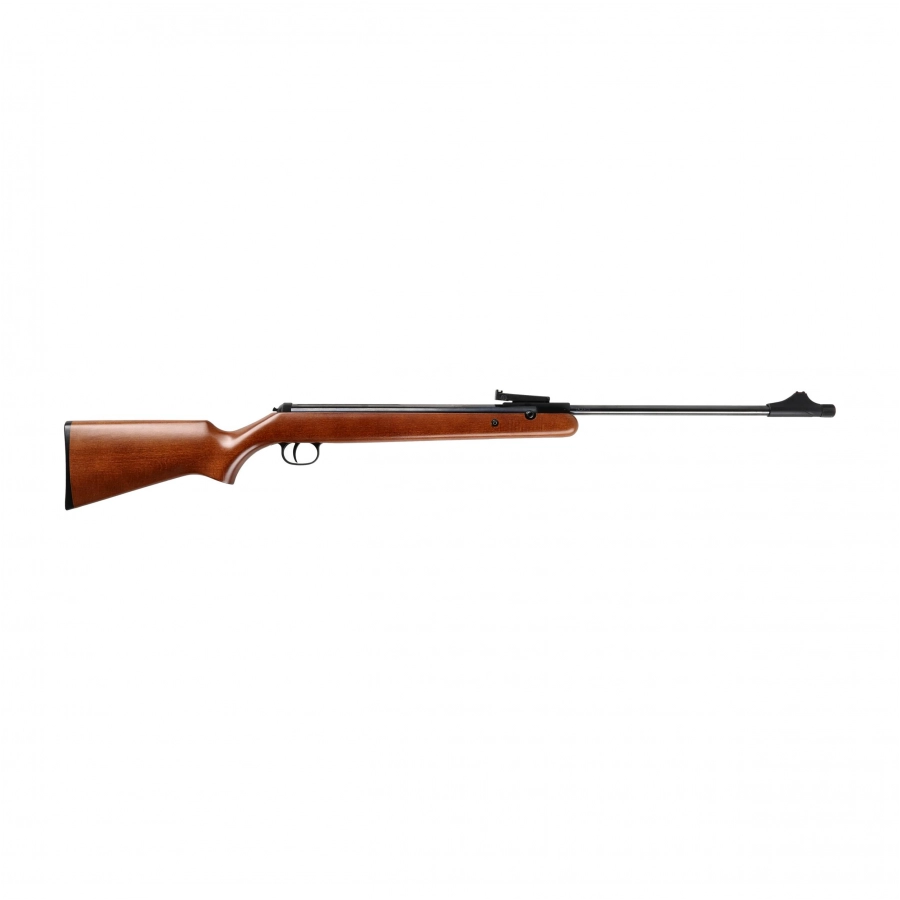

TheDiana 34 EMS wood 5.5mm is a modernized version of the classic spring-loaded windcheater, which features a number of innovative solutions never seen before in piston-spring windcheaters.
New solutions:
- Easy Modular System - modular design allows easy replacement and tuning of important components,
- interchangeable barrel with position adjustment system,
- robust locking system for locking the barrel in the breech,
- two-piece tensioning lever with polymer pads,
- barrel terminated with 1/2" UNF male thread,
- possibility to replace the musket,
- discharge brake to improve accuracy,
- possibility to install N-TEC gas piston.
Elegant bed

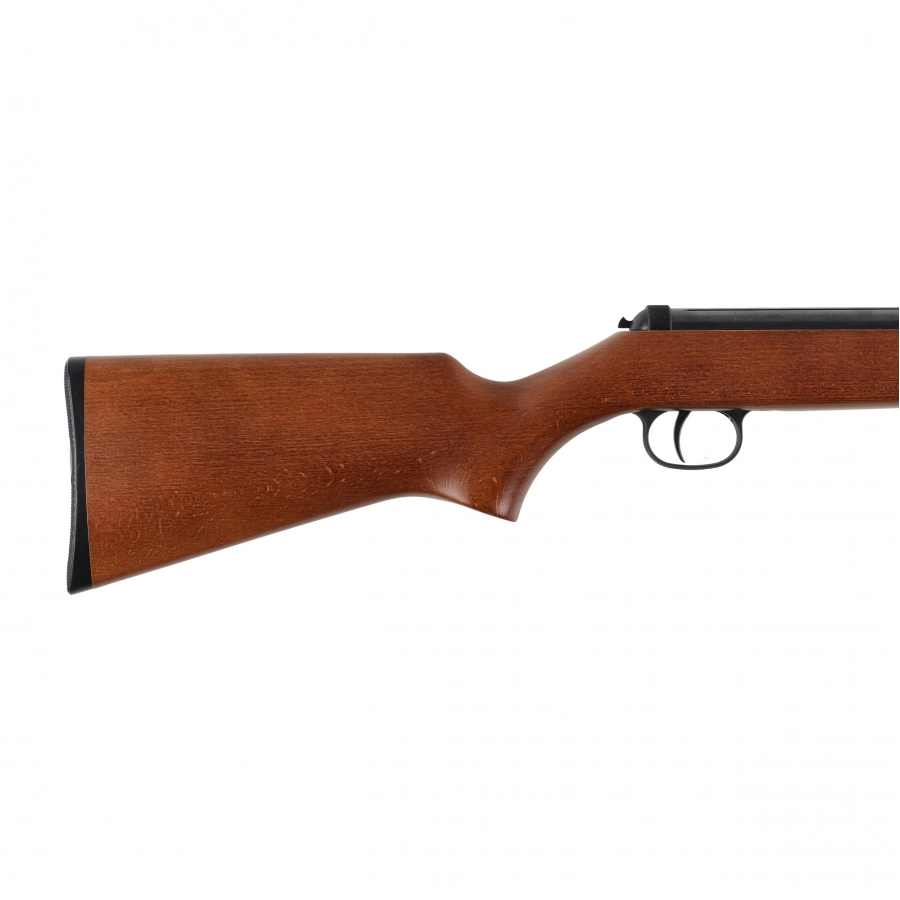

The stock is made of oiled beech wood with a matte finish. The flask with a symmetrical Monte Carlo-type buttstock allows right- and left-handed shooters to comfortably assemble for shooting and use higher-mounted optics. Recoil after shooting is levelled by a rubber foot, which also provides a stable point of support for the flask.
Convenient loading
The spring is tensioned by the classic "barrel break", a method most often used in spring-loaded windcheaters due to its convenient and simple operation. The carbine uses a two-piece tensioning lever with polymer pads that reduce metal friction and improve smooth operation.
Adjustable trigger mechanism
One of the key elements of the weapon affecting accuracy is, of course, the trigger mechanism.
Diana's patented T06 trigger mechanism allows precise adjustment of the slack (first stage), "break" and trigger weight, so the user can adjust the trigger parameters to his or her own preference, which of course has a positive effect on shooting accuracy and repeatability.
Interchangeable barrel

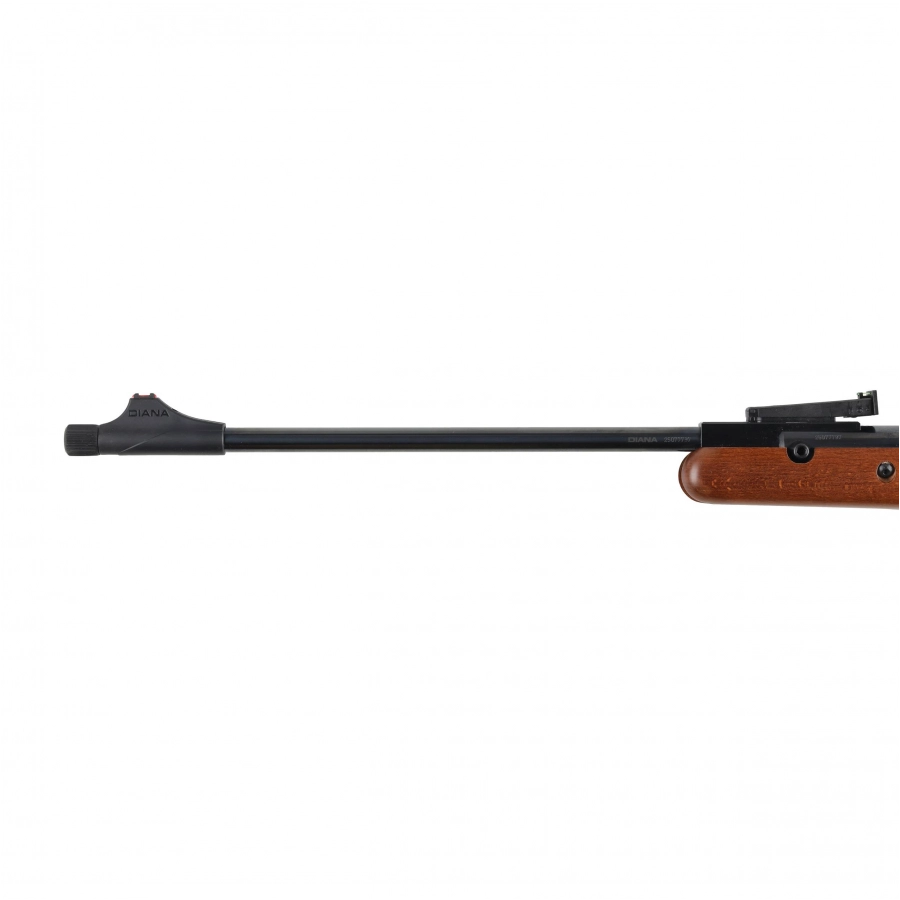

A furrowed barrel with a length of 495 mm is responsible for the accuracy and repeatability of shots. Unlike other spring-loaded carbines, in the Diana 34 air rifle we can replace the barrel ourselves.
The use of an improved barrel mounting system means that the barrel is locked in the lock always in the same position. To precisely adjust the position of the barrel and prevent it from dropping, we can use dedicated spacers of different thickness.
Automatic safety
The carbine uses an automatic safety, activated at the moment of spring tensioning ("breaking the barrel"). Before firing, it is necessary to turn off the fuse each time, which has been conveniently located at the rear of the piston chamber.
Fiber-optic sighting instruments
The carbine has been equipped with modern sighting instruments, i.e. a fiber-optic bowstring and a vertically and horizontally adjustable stock.
Thanks to their excellent light absorption, the fiber optics greatly speed up and facilitate the alignment of the bow tie and the pin barrel. There is also an 11mm rail (with stop holes) on the piston chamber for mounting an optical sight.
