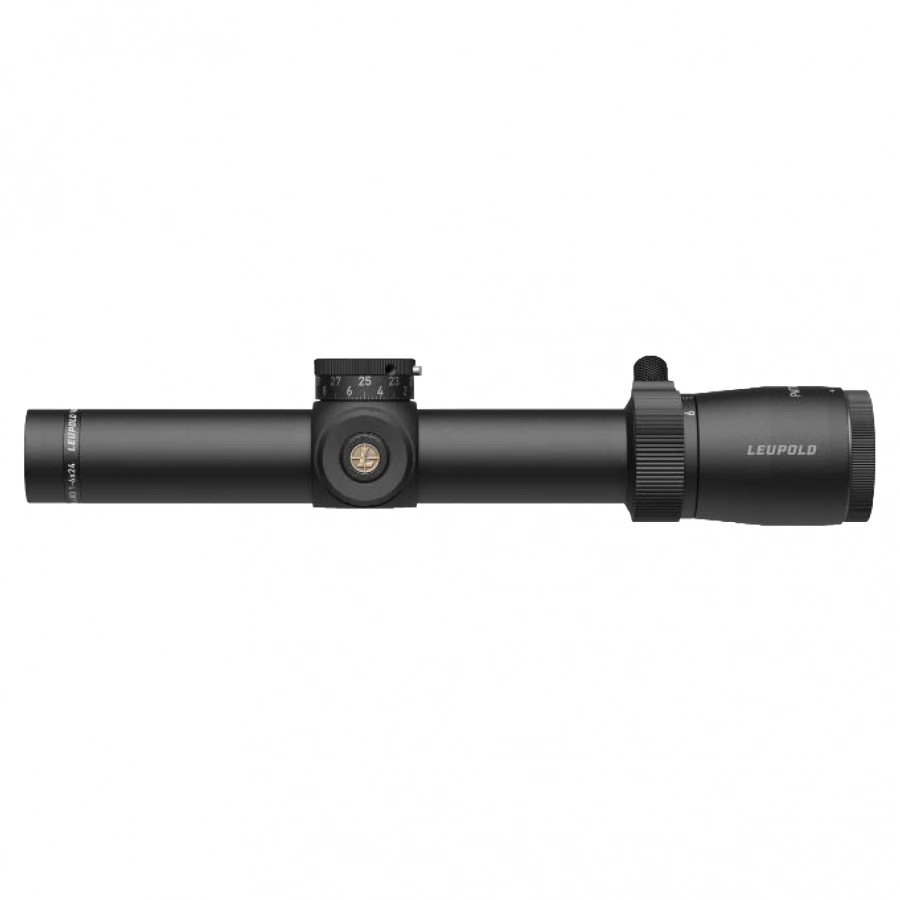

TheLeupold Patrol 6HD 1-6x24 30mm CDS-ZL2 iR CM-R2 is a new-generation running scope designed for hunters and sport shooters, featuring Twilight Max HD optics, a low-profile CDS-ZL2 elevation knob, and an illuminated CM-R2 target reticle in the background.
Highlights of the Patrol 6HD series:
- Twilight Light Max HD Management System:
- Unrivaled brightness even in the toughest conditions
- Enhanced twilight performance
- Enhances image brightness in low-light environments (approximately 30 minutes)
- Eliminates image blur and stray light reflections
- Premium lenses provide edge-to-edge sharpness
- enhances image depth and contrast
- Custom Dial adjustment system - when shooting at long range, eliminates the need to apply aiming point corrections (aiming over the target) due to distance, gravity and wind effects
- Lightweight and durable design - disperses recoil energy evenly
- Endurance tests Leupold Punisher-lunettes undergo rigorous testing on the Punisher simulation machine, during which they are subjected to 5,000 recoil tests. The machine generates shocks with an energy 3× greater than the recoil of a .308 rifle
- Tubus 30 - at longer distances it provides a greater range of aiming reticle adjustment
- Fast Focus-enlarged pin for changing magnification
- Robust construction-The scope's sealed tube is 100% resistant to internal vaporization and weather conditions
- Guard-Ion coating-reduces dirt and water adhesion on the lenses and ensures high image sharpness
- Illuminated target reticle* - makes aiming faster and easier in low-light conditions (*selected models)
- Pop-Up Rezero-prevents accidental change of settings and allows quick return to original settings
Leupold-renomed optical sights
Leupold Patrol 6HD 1-6 × 24 30 mm CDS-ZL2 iR CM-R2 is a universal rifle sight that can be successfully used by hunters for driven hunting, sport shooters in dynamic competitions and enthusiasts of tactical-defense shooting.
One of the most important advantages of Leupold Patrol scopes is their light weight. The weight of the 273 mm long scope is only 380 g, which makes it one of the lightest, in the group of scopes with such optics. The scope has an aluminum (6061-T6) tube with a diameter of 30 mm, which, unlike the inch version, provides a much greater range of adjustment of reticle settings of 170 MOA vertically and horizontally. On the eyepiece there is a ring with an enlarged pin used for quick and convenient change of magnification range of 1-6 ×.
The tube of the scope is filled with a patented mixture of gases (argon and krypton), which eliminates the effects of thermal shock, reduces the diffusion of gases inside the scope and completely eliminates the problem of internal lens evaporation. The waterproofing technology used guarantees 100 percent weather resistance. The scope underwent rigorous testing on the Punisher simulation machine, during which the scopes were subjected to 5,000 recoil endurance tests. The machine generates shocks with an energy 3× greater than the recoil of a .308 rifle, so the scope can be used on sporting and hunting weapons without fear.
Leupold running scope - for hunters and sport shooters
The American manufacturer Leupold places special emphasis on image quality and brightness. The optical system uses premium lenses and the Twilight Light Max Management system responsible for high light transmission, and reducing scattered light.
The visible image is bright and sharp from edge to edge and deep, so the scope can be used for hunting at dawn and dusk (adds about 30 minutes of light). Premium lenses increase blue and red light transmission and balance colors to maximize contrast. Glare is offset with special mechanical structures and blackened lens edges. The outer surfaces of the lenses are coated with a durable Guard-Ion coating, which protects the optics from scratches and reduces the settling of water, dust and fingerprints.
CM-R2 illuminated crosshair optical sight
The illuminated crosshair sighting reticle, optimal magnification and wide field of view (from 40.3 to 6.4 m / 100 m) make the scope ideal for group hunting, and 3Gun shooting competition.
The CM-R2 sighting reticle is designed for instinctive and dynamic shooting at close range, for which a smaller 6× magnification is sufficient. Compared to other target crosshairs, the CM-R2 reticle allows the shooter to estimate the distance to the target and fire at targets with greater flexibility. The CM-R2 reticle consists of a bold crosshair with an open top and a central 0.5 MOA dot surrounded by a 5.0 MOA circle. Thanks to the open top and illumination of the target mark, the reticle ensures precision and speed of target entry. The clear markings on the horizontal beams can be used to guide targets moving at 5, 10 and 15 miles per hour, respectively. This unique blend of capabilities allows the sight to be used for shooting in the open, in the woods and on the IPSC circuit.
Theilluminated aiming mark (circle and dot) automatically moves the shooter's sight to the center of the reticle, making target entry quick and instinctive. Adjustment of the illumination (7 levels) is made with the Push Button on the side. The first 3 settings are for use in low light conditions, the others for use in sunlight. The adjustment range allows comfortable operation regardless of lighting conditions and time of day.
Locking reels with quick zeroing system
The scope uses a practical Pop-Up Rezero zeroing system (with the push of a button), which prevents accidental change of settings and allows instant return to the original settings without the need for additional tools. The use of the System Zero Lock eliminates the possibility of accidentally changing the elevation settings while allowing a quick and precise return to zero. The turrets are 1/4 MOA adjustable. The crosshair adjustment range is 170 MOA vertically and horizontally.
CDS system
The scope uses an innovative CDS (Custom Dial System) that allows the shooter to adjust the parameters of the elevation barrel to match the distance and ballistics of specific ammunition. The CDS-ZL2 is a low-profile adjustment turret that prevents accidental changes in settings. The Zero Lock locking system provides easy one-button reset of settings. Once the CDS is properly configured, after just a short training session, we can shoot accurately and reproducibly at long distances without the need to use an elevation table (changing the aiming point).
A sight with a 30-year warranty
To ensure stable zero holding, the erector system is constantly affected by a double progressive spring (30% stronger than a linear spring). Its task is to level the shock caused by the recoil of the weapon and increase the life of the internal components. High accuracy in the manufacture of key elements guarantees repeatable hits at different magnifications. The scope's high quality is also confirmed by the manufacturer's 30-year warranty.
