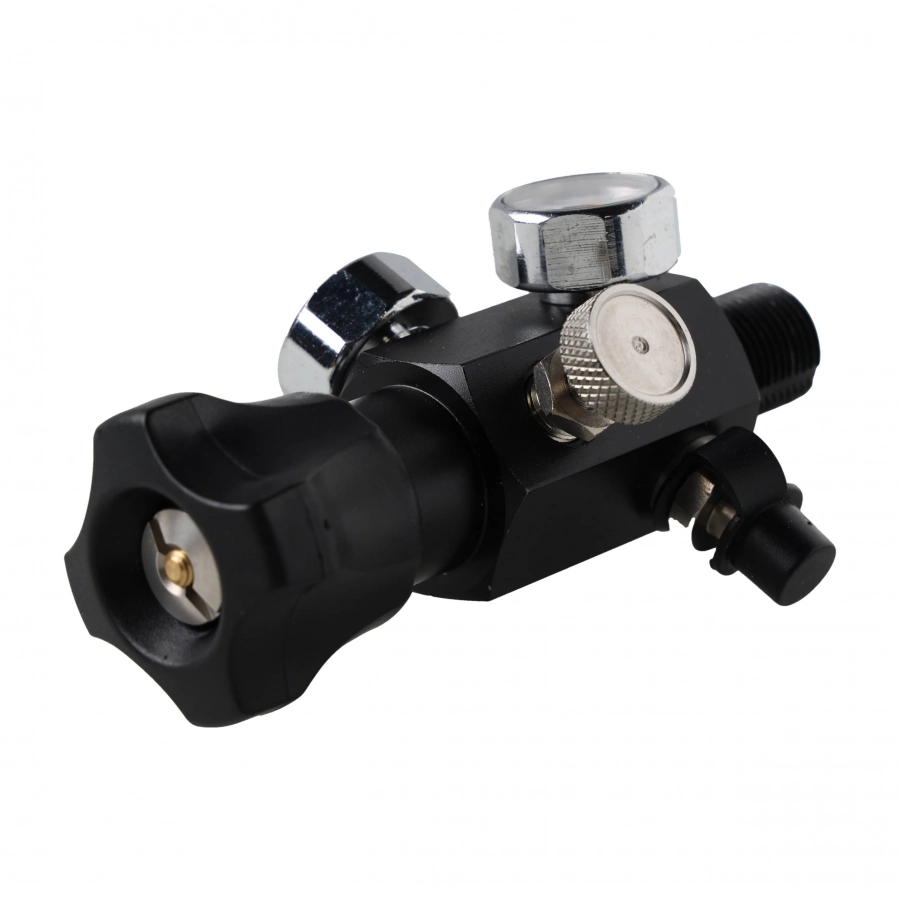

Made of stainless steel, the Tuxing TX15 adapter is safe and significantly simplifies the process of filling carabiners or cylinders.
Tuxing TX15 cylinder and cartridge filling adapter - durable and practical.

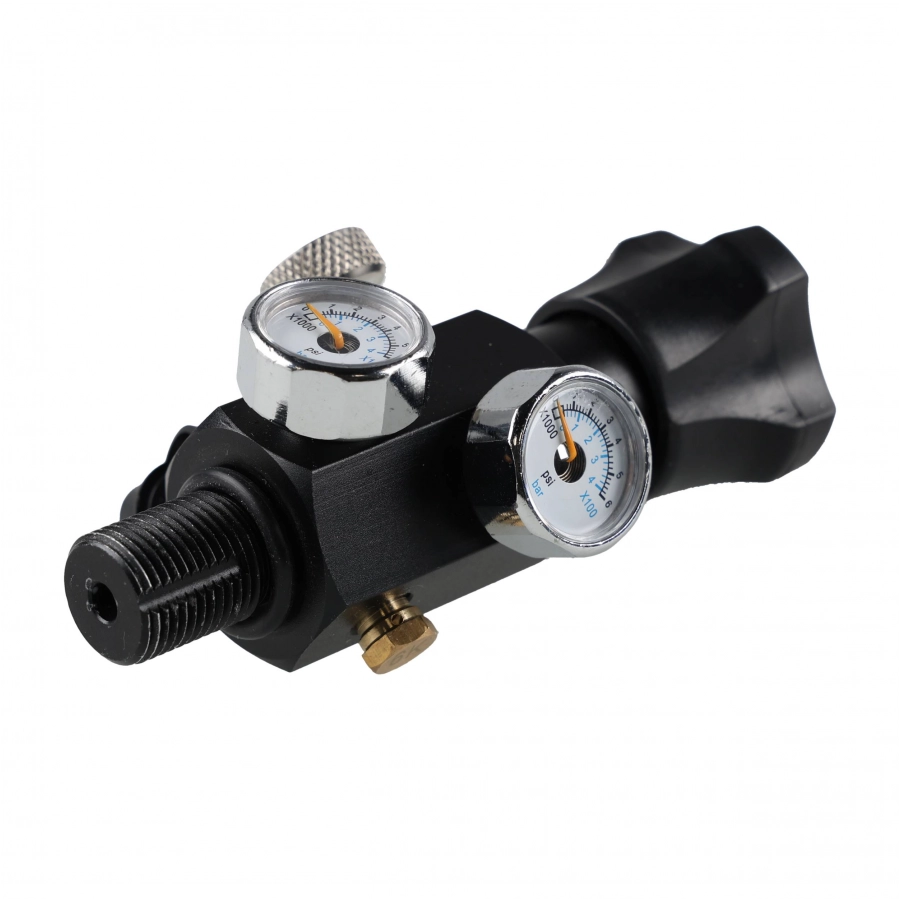

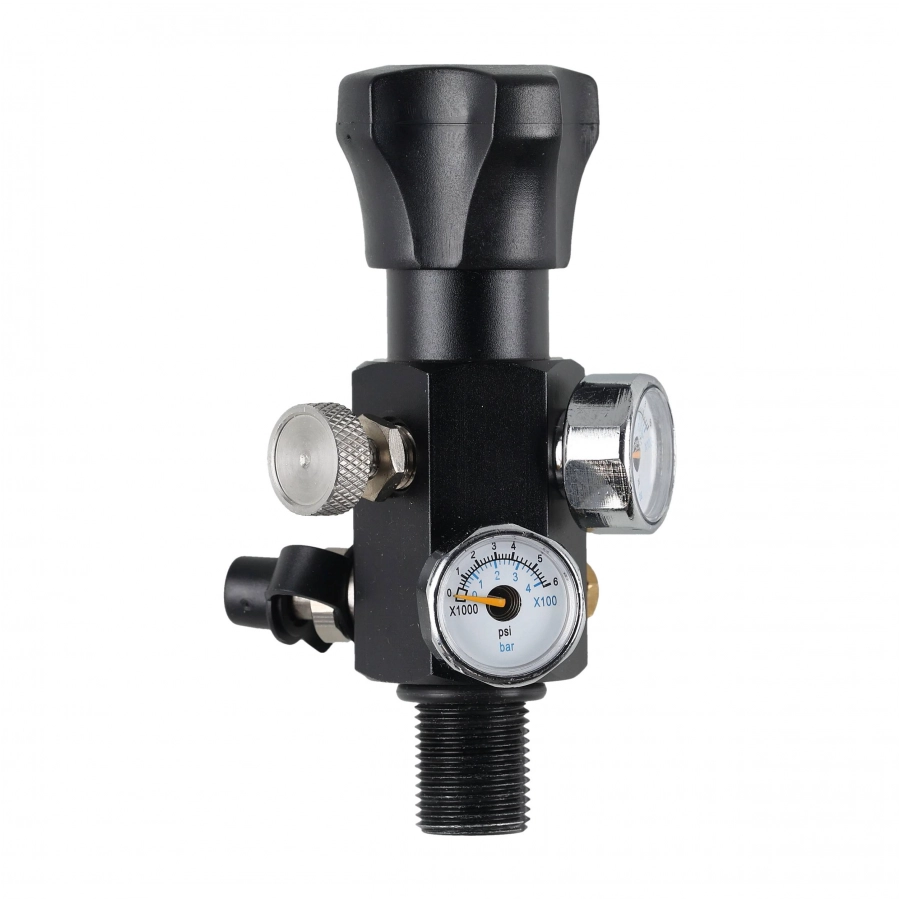

The adapter is equipped with two pressure gauges: one shows the pressure in the tank, and the other shows the pressure on the filling line. There is a regulator for adjusting the air flow and an emergency screw for draining excess pressure. It has an8mm male quick-connect coupling, protected by a silicone plug, and a special knob for draining pressure from the hose.
Dimensions and thread
Dimensions of the adapter: 9.7 cm (length), 8 cm (width), 12.9 cm (height). The adapter weighs 480 g.
The thread on the Tuxing TX15 Adapter is M18x1.5 and will easily fit all Tuxing and Scandinavia Arms cylinders.
The kit includes the fill adapter and spare orings.
Tuxing TX15 cylinder and cartridge filling adapter - features
- Made of stainless steel.
- Two pressure gauges: for tank pressure and filling line.
- Reducer for regulating air flow.
- Emergency screw for draining excess pressure.
- Male 8 mm quick-connect coupling with silicone plug.
- Knob for draining pressure from the hose.
- The M18x1.5 thread is compatible with Tuxing and Scandinavia Arms cylinders.
- The maximum working pressure is 300 bar.
- Filling adapter and spare orings included.
