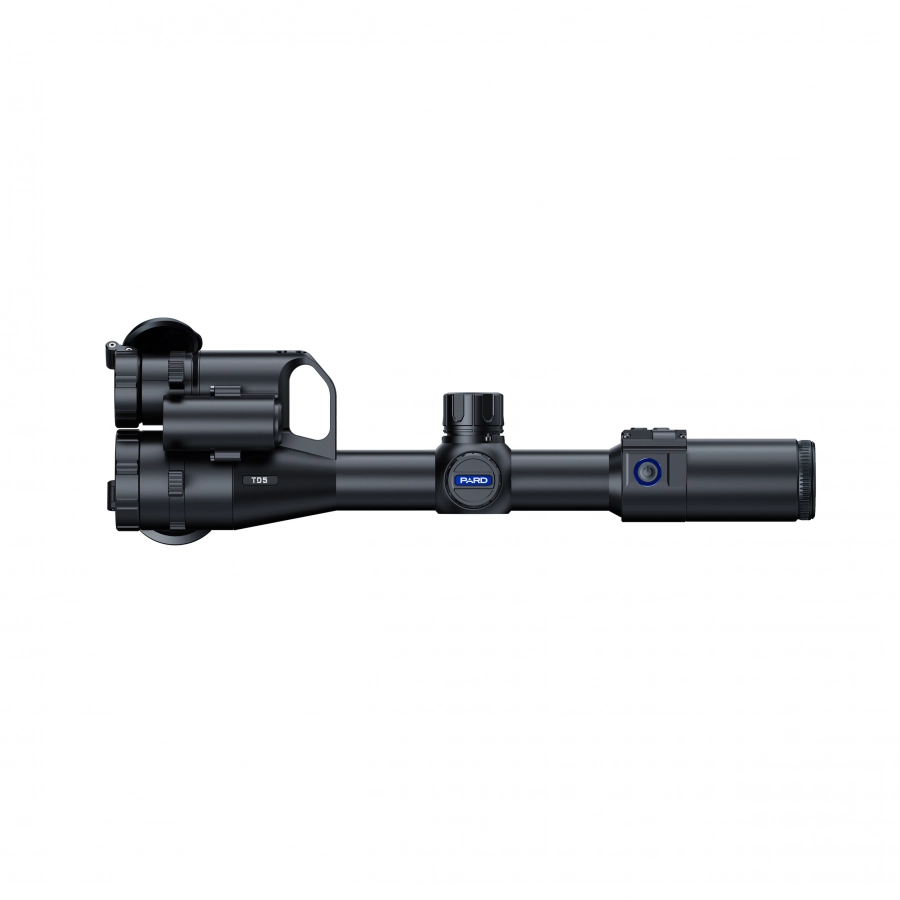

Pard TD62-70 night vision scope, TD62-70/850/F

Pard TD62-70/850/F rangefinder night vision scope with 850 nm infrared illuminator. Thanks to the use of modern technology, the device is equipped with a circular LTPS display with a resolution of 800 × 800, which significantly improves the image quality.

PARD TD62 thermal and night vision sight with 850 nm infrared illuminator - features:

• Display: round LTPS 800 × 800, providing high image quality.
• Intuitive operation: convenient dial for changing modes (night vision/thermal vision).
• PIP mode: simultaneous display of thermal and night vision images on the screen.
• Thermal detector: 640 × 480 resolution, 12 μm pixels, sensitivity ≤25mK.
• Lens: 70mm, ideal for precision detection.
• Rangefinder module: distance measurement up to 1000 meters, integrated ballistic calculator.
• Infrared illuminator: 850 nm wavelength, range up to 350 meters.
• Eye shield: rubber, length 100 mm, for comfort.
• Image enhancement algorithms: IREA (pixel smoothing and thermal imaging enhancement) and VLEA (low-light night vision imaging enhancement).

PARD TD62 thermal and night vision sight with 850 nm infrared illuminator - functional and precise

The TD62 sight is designed for intuitive operation - the control knob allows easy switching between night vision and thermal imaging modes. The PIP (Picture in Picture) mode allows simultaneous display of images from both technologies on a single screen, which supports precise target identification and accurate aiming.

The device features a 640 × 480 resolution thermal detector with 12 μm pixels and a thermal sensitivity of ≤25mK (0.025℃). Combined with a 70mm lens, the TD62 offers excellent performance in detecting even small temperature differences, making it an ideal tool for hunting.

The new PARD rangefinder module, capable of measuring distances of up to 1,000 meters, not only provides precise target data, but also, thanks to an integrated ballistic calculator, supports the calculation of bullet trajectory parameters such as mass, velocity or range, which significantly improves shooting efficiency.

Illuminator and advanced algorithms

The TD62 has an infrared illuminator with a wavelength of 850 nm, which illuminates the area in night vision mode at a distance of up to 350 meters. A 100mm-long rubber eye shield enhances user comfort, allowing comfortable observation for long hours.

The viewfinder uses advanced image enhancement algorithms: the thermal imaging IREA algorithm, which smooths pixels and improves imaging quality, and the night vision VLEA algorithm, which enhances low-light imaging performance.

PARD TD62 thermal and night vision sight with 850 nm infrared illuminator - specifications

• Type: uncooled Vox infrared sensor
• Resolution (px): 640*480
• Pixel size (µm): 12*12
• NETD (mK): ≤25 mK （0.025 ℃）.
• Frame rate (Hz): 50
• Human detection distance (m): 1400
• Vehicle detection distance (m): 2600
• Image engine: Pard IREA
• Lens (mm): 35
• Optical magnification (x): 3
• Digital zoom (x): 2
• Continuous digital zoom: 3-6

Visible light sensor

• Type: CMOS sensor
• Resolution (px): 1920*1080
• Pixel size (μm): 2.9
• Sensitivity (lux): 0,001
• Frame rate (fps): 30
• Image engine: PARD VLEA
• Lens (mm): 70
• Optical magnification (x): 6,5
• Digital zoom (x): 2
• Continuous digital zoom: 6.5-13
• Image engine: Pard VLEA
• Focus range: 3m-∞

Display

• Type: LCD IPS
• Resolution (px): 800*800
• Grid style: 6
• Grid color: 4 (red/white/yellow/green)
• Scene mode: city/rainy/forest
• Image mode: WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
• Eye relief (mm): 100
• Diopter adjustment (D): -5D~+3D

Photo/Video

• Photo resolution (px): 2592 × 1944
• Photo format: .JPG
• Video resolution (px): thermal: 1024*768/ night vision: 1440*1080
• Video format: .mp4
• Memory (GB): TF card (128 GB)

Main functions

• LRF detection range (m): 1000
• Ballistic calculator: yes
• PYPEĆ: yes
• Gyroscope: yes
• Motivated recording: yes
• Loop recording: yes
• Red dot: yes
• E-compass: yes
• Shutter: mechanical shutter
• Microphone: yes
• Firmware update: yes

Infrared illuminator

• Infrared type: VCSEL
• Infrared power: 5 W
• IR illumination level: 3 levels
• Infrared distance (m): 350
• IR wavelength (nm): 850

Other

• USB type C: yes
• HDMI output: yes
• WiFi: yes
• Supported apps: PardVision
• Battery type: lithium-ion 21700*1
• Output voltage (V): 3.7
• Operating time (h): ≤6
• External power supply (V): type C
• Degree of protection: IP67
• Operating temperature (°C): -20 ~ 50
• Recoil force (J)/shock resistance (J): 6000
• Housing: aluminum alloy
• Lens: all-glass lens with multi-layer coating
• Product dimensions (L x W x H, mm): 350 × 91 × 95
• Weight (with/without battery): 800/845 g.
