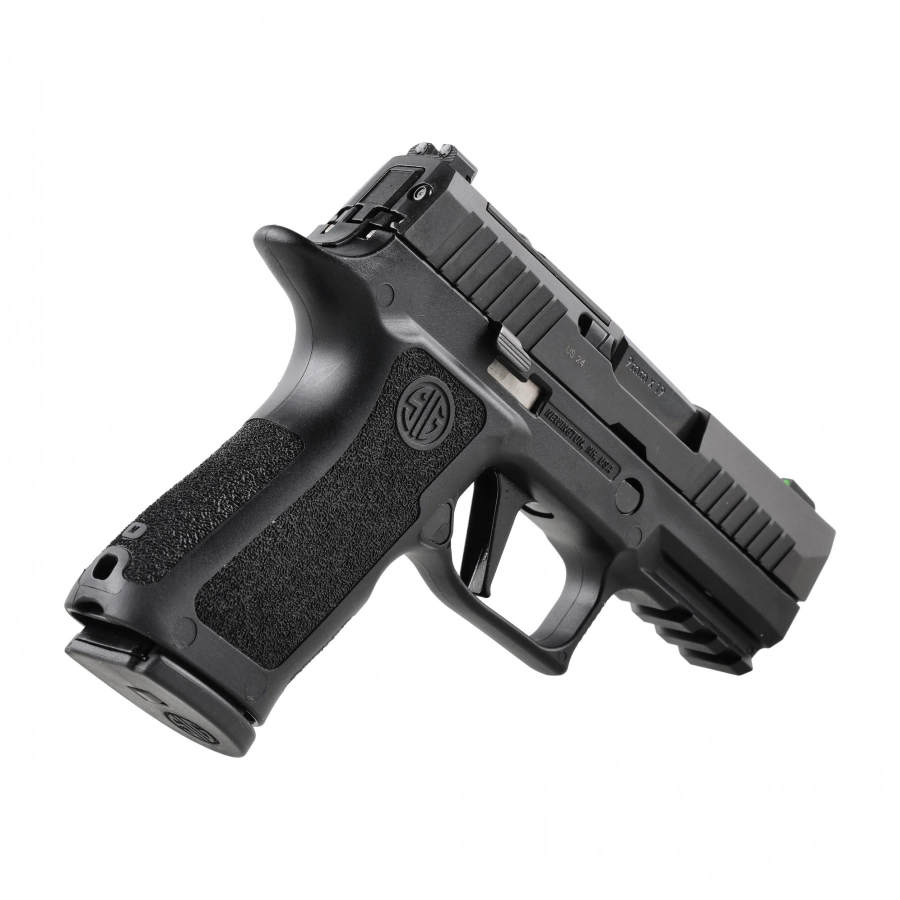

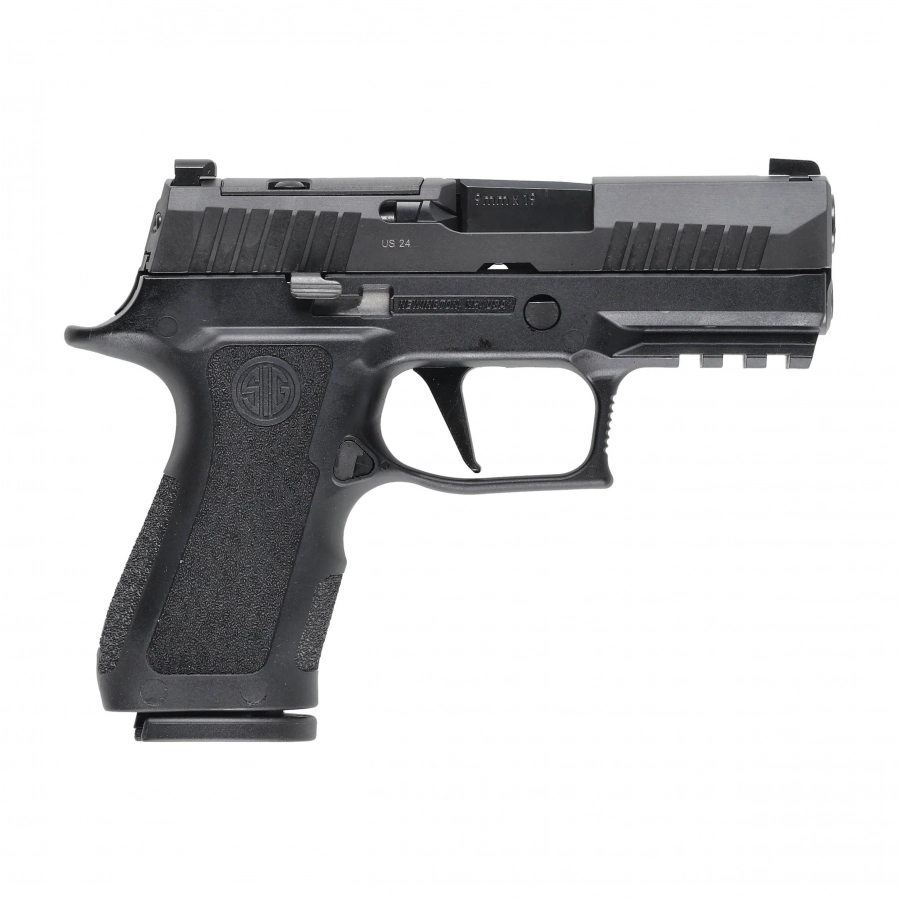

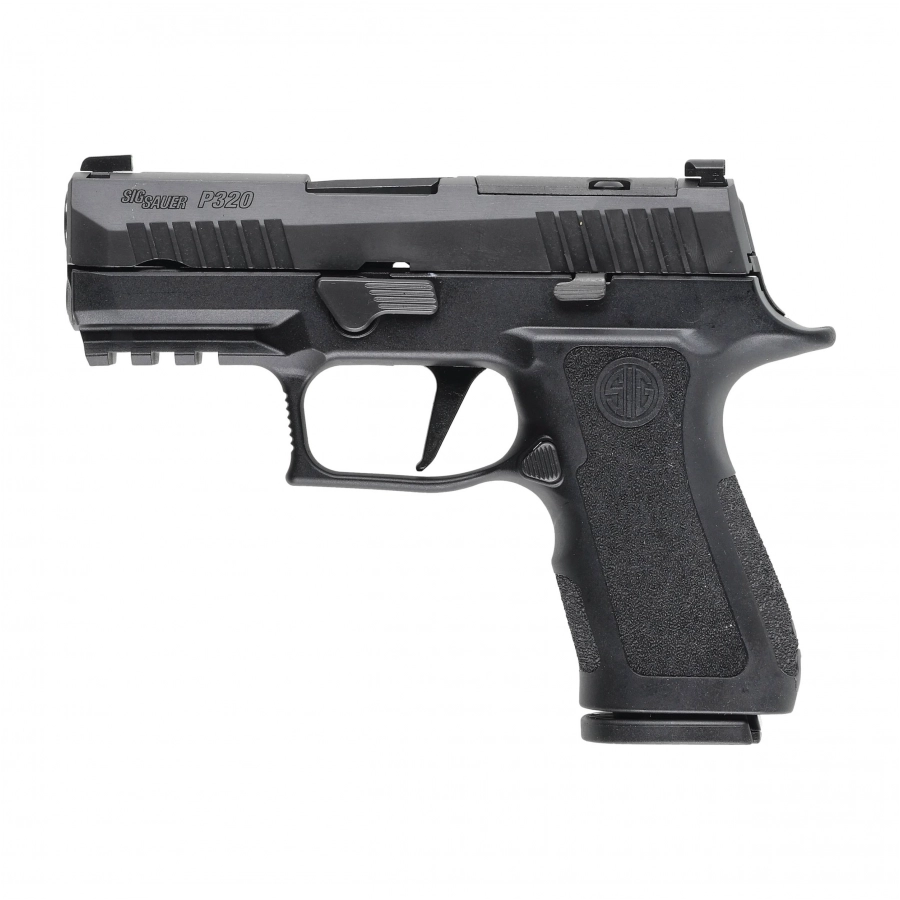

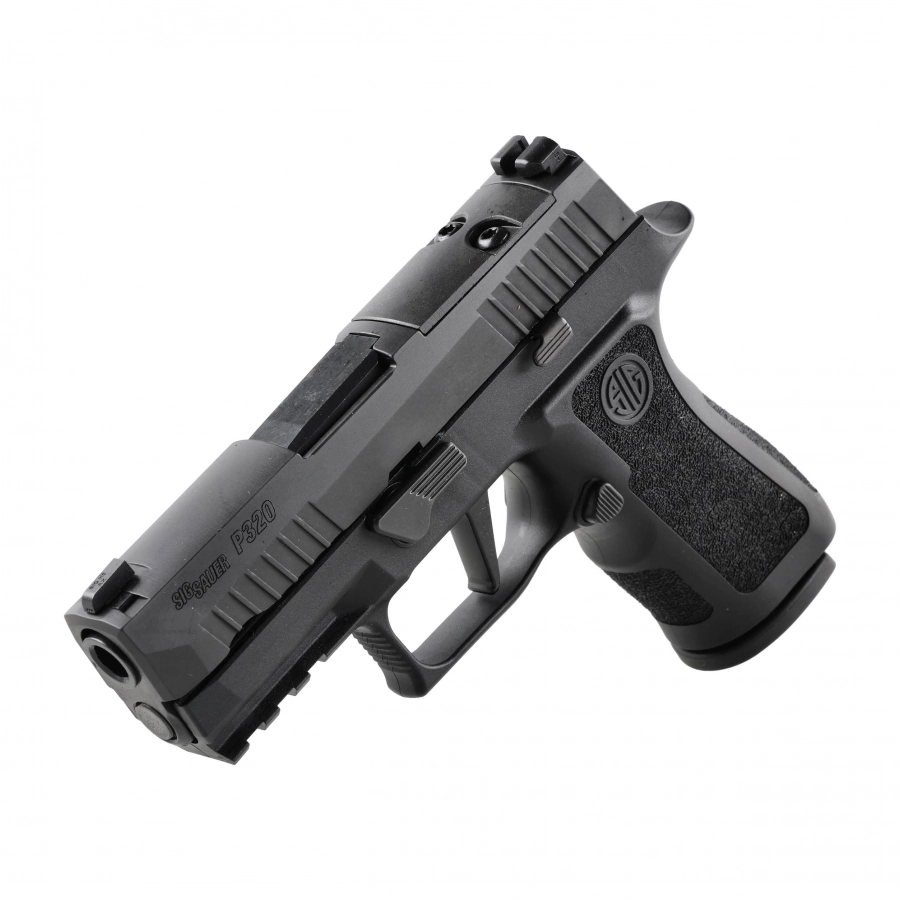

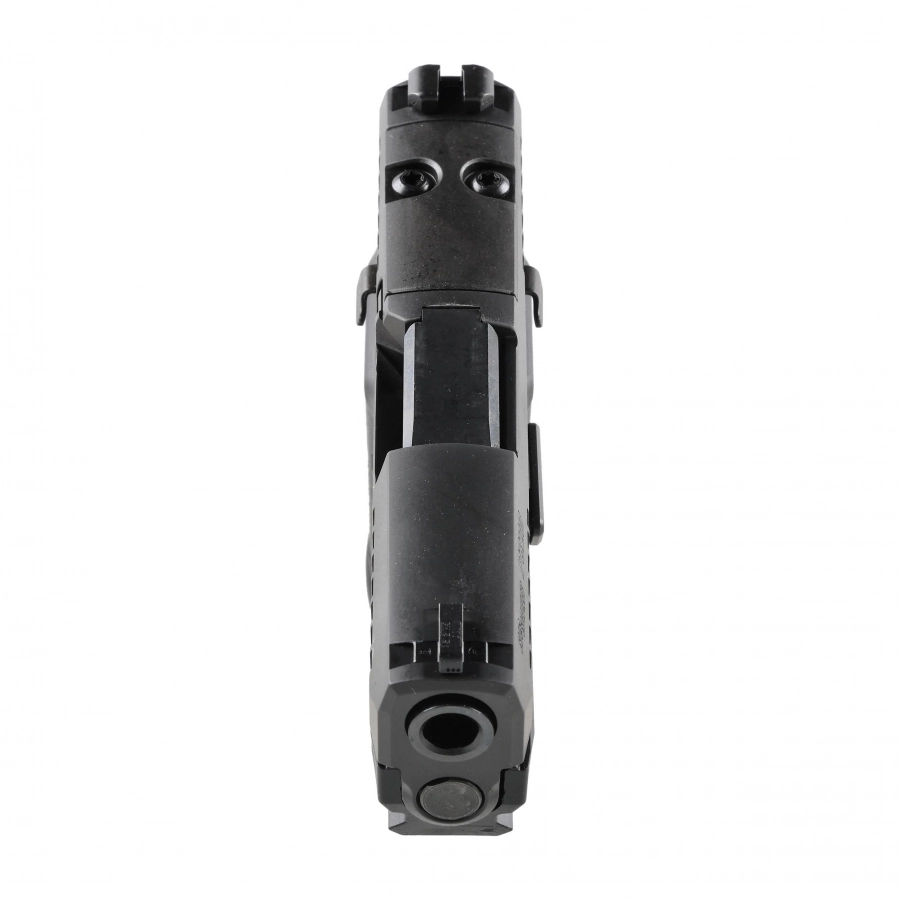

TheSig-Sauer P320 X-COMPACT is an ultra-compact self-reloading pistol by Sig Sauer, adapted to the 9 × 19 mm caliber. This model was created as a design to replace the Beretta pistols used so far, with a modern design based on a polymer frame, which also came to fruition. A distinctive feature of the pistol is the interchangeable trigger and breech guide assembly, which takes the form of an insert that slides into the pistol's skeleton. Significantly, this is the key element of the weapon, on which the numbering is imprinted. Such a solution makes it possible to easily replace the skeleton with a different shape or color without registering another weapon. In addition, the P320 is based on proven design solutions that have become a standard among cockless short firearms. The model is available in black.
Features of the Sig-Sauer P320 X-COMPACT self-revolving pistol:
- It is a modern design with a metal breech and polymer frame.
- The trigger assembly and breech guides are in the form of a module that pulls out from the skeleton.
- It has an enlarged trigger bail, making it easier to shoot with gloves.
- The aggressive texture on the skeleton guarantees a solid and stable grip while shooting.
- The number of manipulators has been reduced to a minimum and comes in the form of a breech latch, magazine and stripping lever.
- A long Picantinny 22mm mounting rail for a flashlight or laser is located under the barrel.
- Beveled bevels on the breech prevent the pistol from snagging when sliding into a holster.
- It is equipped with crisp, adjustable targeting instruments with dots.
- It is equipped with a cutout on the breech that allows the use of a microcollimator (Optics Ready)
- It has a magazine for 15 cartridges and a 3.6" (91 mm) long barrel.
Mechanism of operation of the pistol
The pistol is a classic weapon for 9 × 19 mm centerfire ammunition. Due to its high energy, a solid lock and an operating principle based on short barrel recoil with its locking by skewing it vertically (typical Browning system) are used here. A shell ejection window serves as the locking resistance. A strong return spring further reduces the sensation of recoil acting on the shooter. The striker-fired striking mechanism .
Safety features and manipulators
The pistol has no external manual safeties. The primary one is an internal firing pin lock. The magazine release button is integrated into the base of the bail . Just above it is located a lever dropping the lock from its rear position after the last shot. To unfold the weapon, there are duplicated levers on both sides of the frame.
Aiming instruments and the Optics Ready system
The weapon has adjustable mechanical targeting instruments (X-Ray3 bow tie and Night Sight sights), and they are equipped with bright dots for easy aiming. This model has also been adapted for mounting a modern form of sight in the form of a collimator. Mounting is done directly on the lock, on a special mounting plate. What's more, the installed sight does not interfere with the simultaneous use of mechanical sighting instruments.
The barrel used in the pistol
A 3.6" (91 mm) long forged barrel made of stainless steel was used here. It has a right-hand thread with 6 furrows.
Capacious magazine in the Sig-Sauer P320
The pistol has a metal magazine for 15 rounds + 1 in the chamber. The grip has an ergonomic angle and is covered with an anti-slip texture . The skeleton can be replaced with a different one, more suited to the shooter's preferences.
