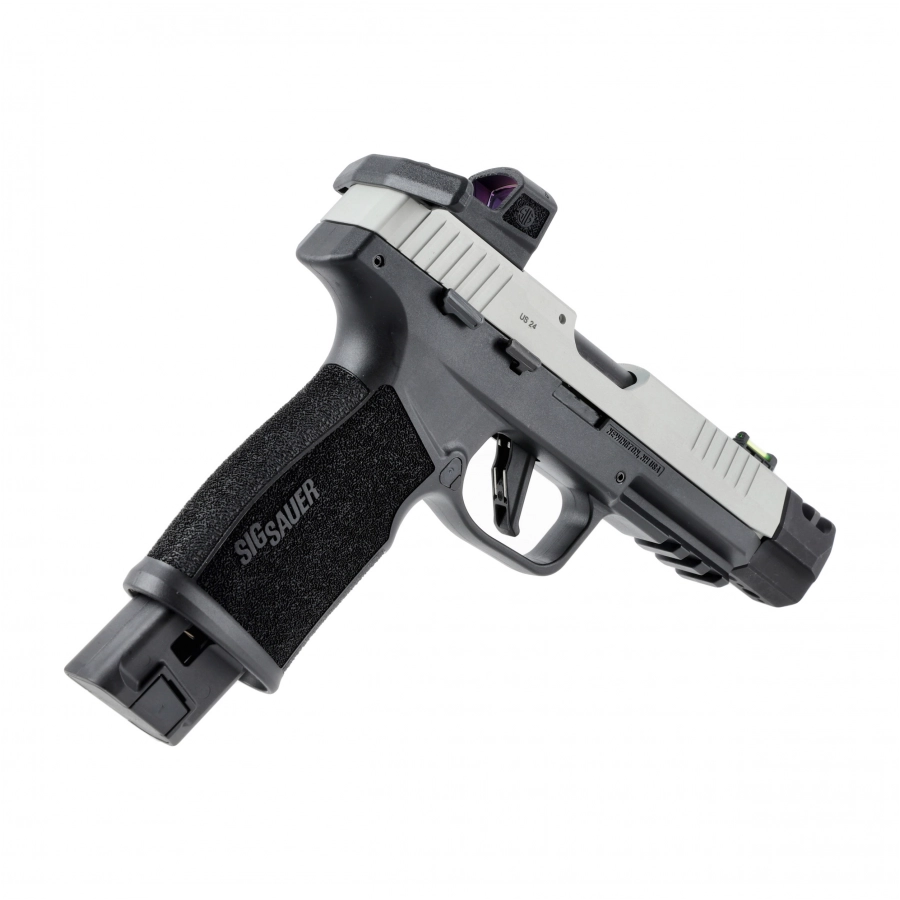

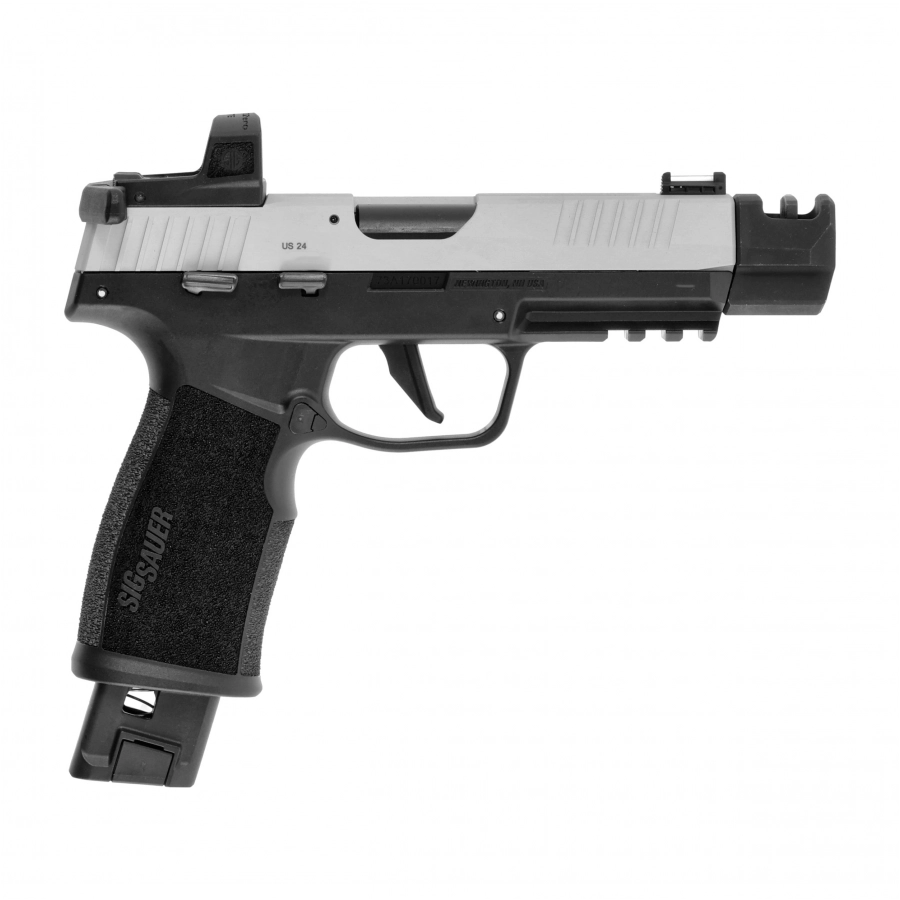

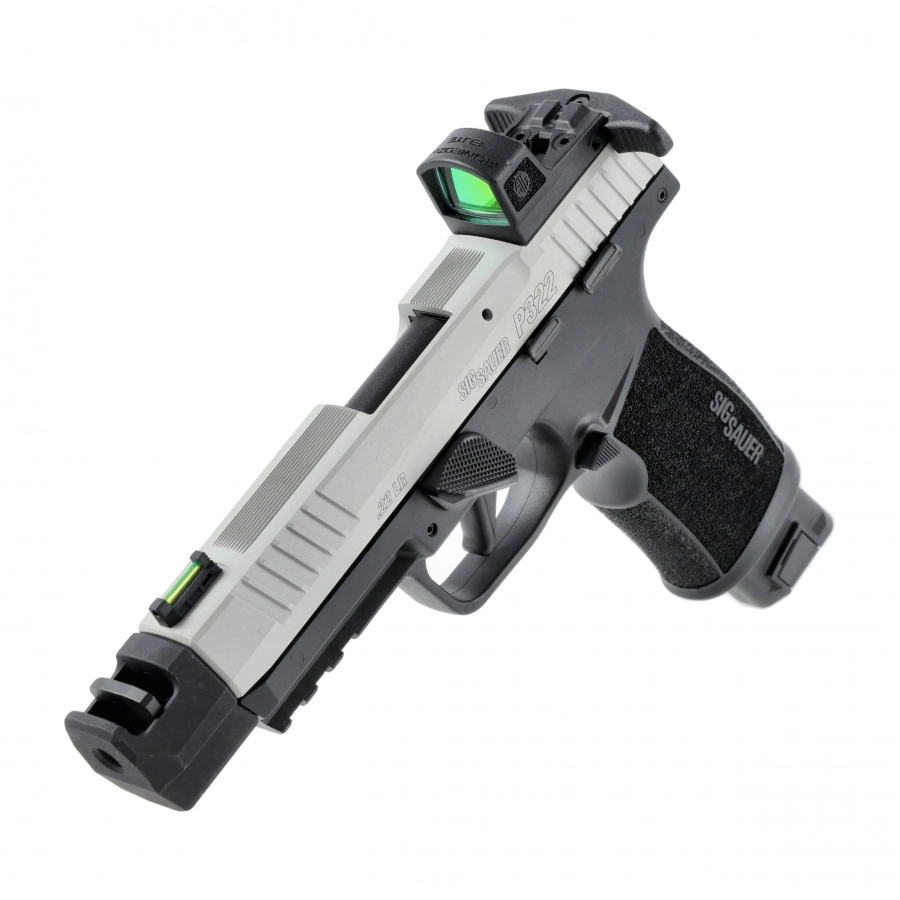

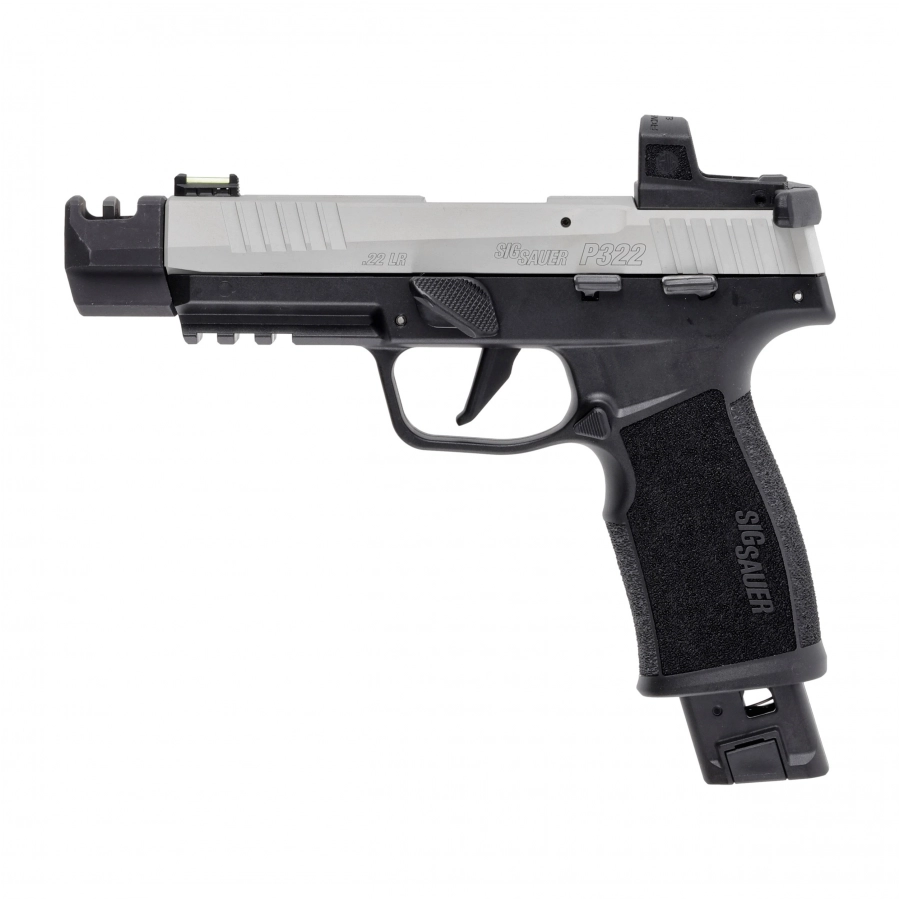

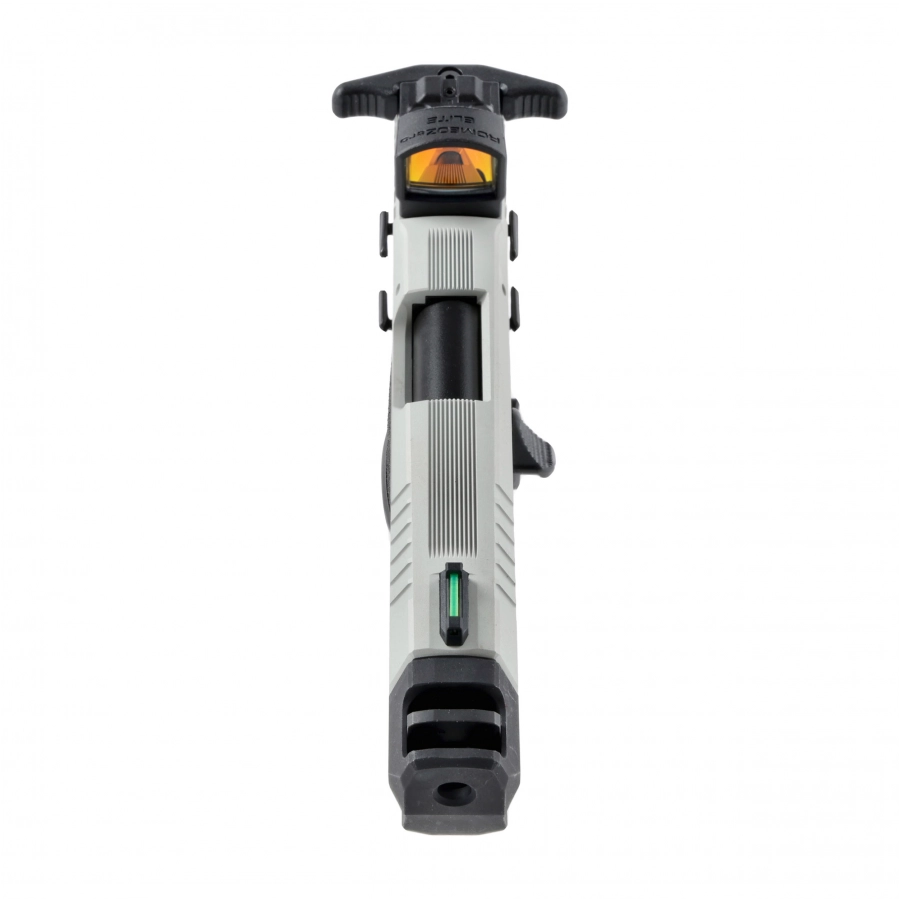

Sig-Sauer P322 COMPENSATOR is a self-reloading pistol by Sig Sauer, adapted to .22 LR (5.6 mm) side-loading ammunition. This model was created as a sporting and cheaper-to-use alternative to the version adapted to centerfire ammunition and is equipped with a compensator. A distinctive feature of the pistol is the interchangeable trigger and breech guide assembly, which takes the form of an insert that slides into the skeleton of the pistol. Significantly, this is the key element of the weapon, on which the numbering is imprinted. Such a solution makes it possible to easily replace the skeleton with a different shape or color without having to register another copy of the weapon. In addition, the gun is based on proven design solutions that have become a standard among modern firearms. The model is available in black/silver.
Features of the Sig-Sauer P322 COMPENSATOR self-reloading pistol:
- It is a modern design with a metal breech and polymer frame adapted to the .22 Long Rifle caliber.
- The trigger assembly and breech guides are in the form of a module that pulls out of the skeleton.
- It has an enlarged trigger bail to facilitate shooting with gloves.
- The aggressive texture on the skeleton guarantees a solid and stable grip while shooting.
- The number of manipulators has been reduced to the necessary minimum.
- A long Picantinny 22mm mounting rail for a flashlight or laser is located under the barrel.
- Beveled bevels on the breech prevent the pistol from snagging when sliding into the holster.
- It is equipped with crisp, adjustable fiber optic sighting instruments.
- It has the option of installing one of the many collimators available on the market (Optics Ready).
- At the end of the barrel there is a compensator, which reduces the weapon's toss and flare.
- A convenient shelf has been placed above the bail, used for resting the index finger.
- The gun has an additional safety in the form of a wing fuse.
- The sighting instruments are equipped with green fiber optics, with the possibility of adjusting both ranges.
- A protruding element is installed on the lock to facilitate reloading.
- The lock itself is made of silver anodized alumunium.
Mechanism of the gun's operation
The pistol is a classic weapon for 22 LR side-loading ammunition. Due to the low energy of the cartridge, a simple mechanism based on a fixed barrel and free breech recoil was used here. A return spring further reduces the sensation of recoil acting on the shooter.
Safety features and manipulators
The gun has an adjustable wing fuse and an internal firing pin lock. The magazine release button is integrated into the base of the bail . Just above it is located a lever dropping the lock from its rear position after the last shot. A left-hand lever on the frame is used to unfold the weapon.
Targeting instruments
The weapon has adjustable mechanical aiming instruments. They are in the form of a bow-tie and a scimitar. They are equipped with green fiber optics for easy alignment and quick homing of the weapon on the target.
The barrel used in the gun
A 4" (101.6 mm) long forged barrel made of stainless steel was used here.
Capacious magazine and ergonomic grip
The pistol has a polymer magazine for 20 or 25 cartridges + 1 in the chamber. The grip has an ergonomic angle and is covered with anti-slip texturing. The butt caps are interchangeable.
